Printhead verification

You can verify that the printhead is the failing FRU by following this procedure:

1. Turn the printer off, and remove the power cord from the outlet. Remove all cords and cables from the

printer before beginning.

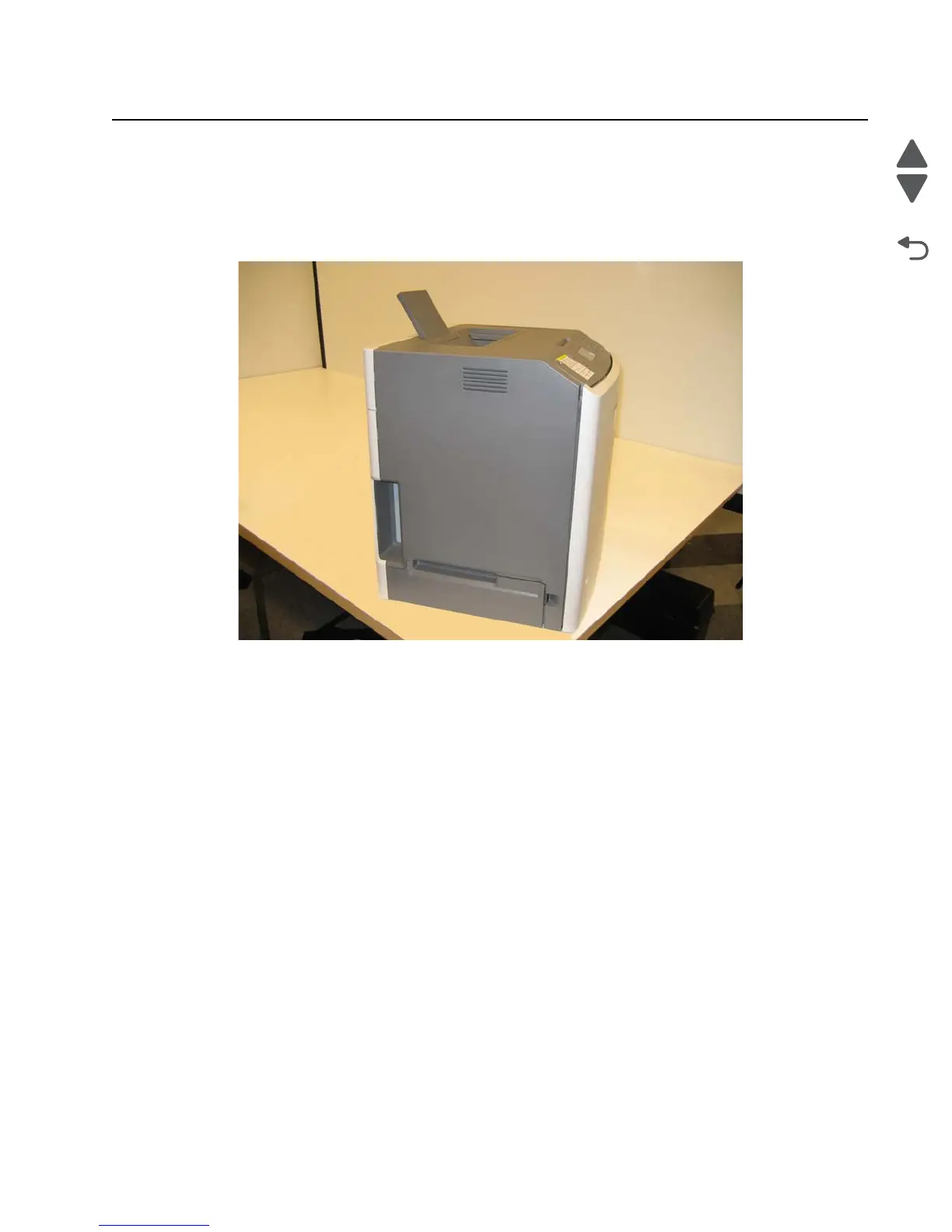

2. Locate the printer on a corner of a work area so the front and back can be accessed.
