Left bellcrank assembly removal

See “Left bellcrank assembly, with spring” on page 7-5 for the part number.

1. Remove the left cover. See “Left cover removal” on page 4-21.

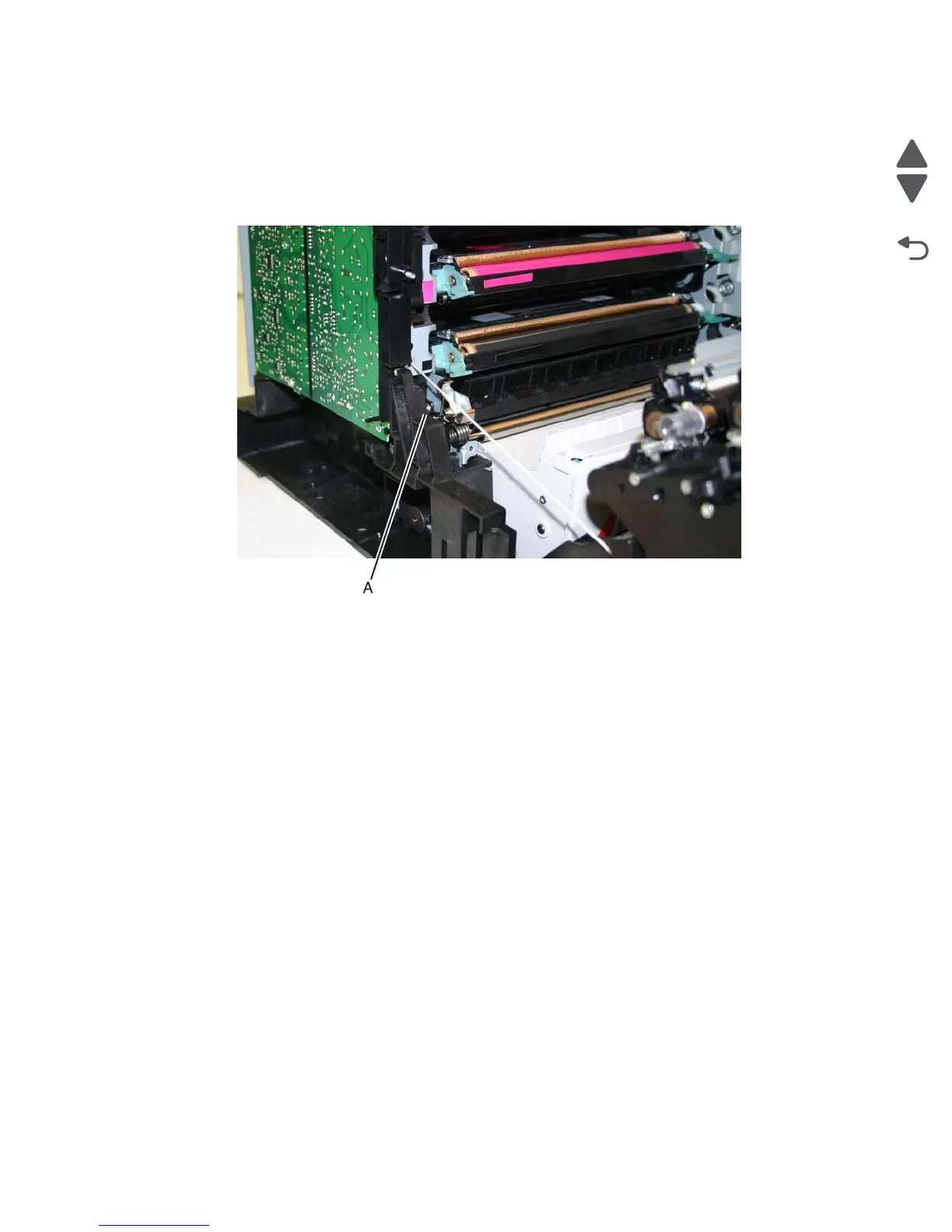

2. Remove the C-clip (A).

3. Remove the left bellcrank assembly.
