Repair information 4-189

5026

Go Back

Wireless network card removal

1. Remove the rear frame cover. See “Rear frame cover removal” on page 4-33.

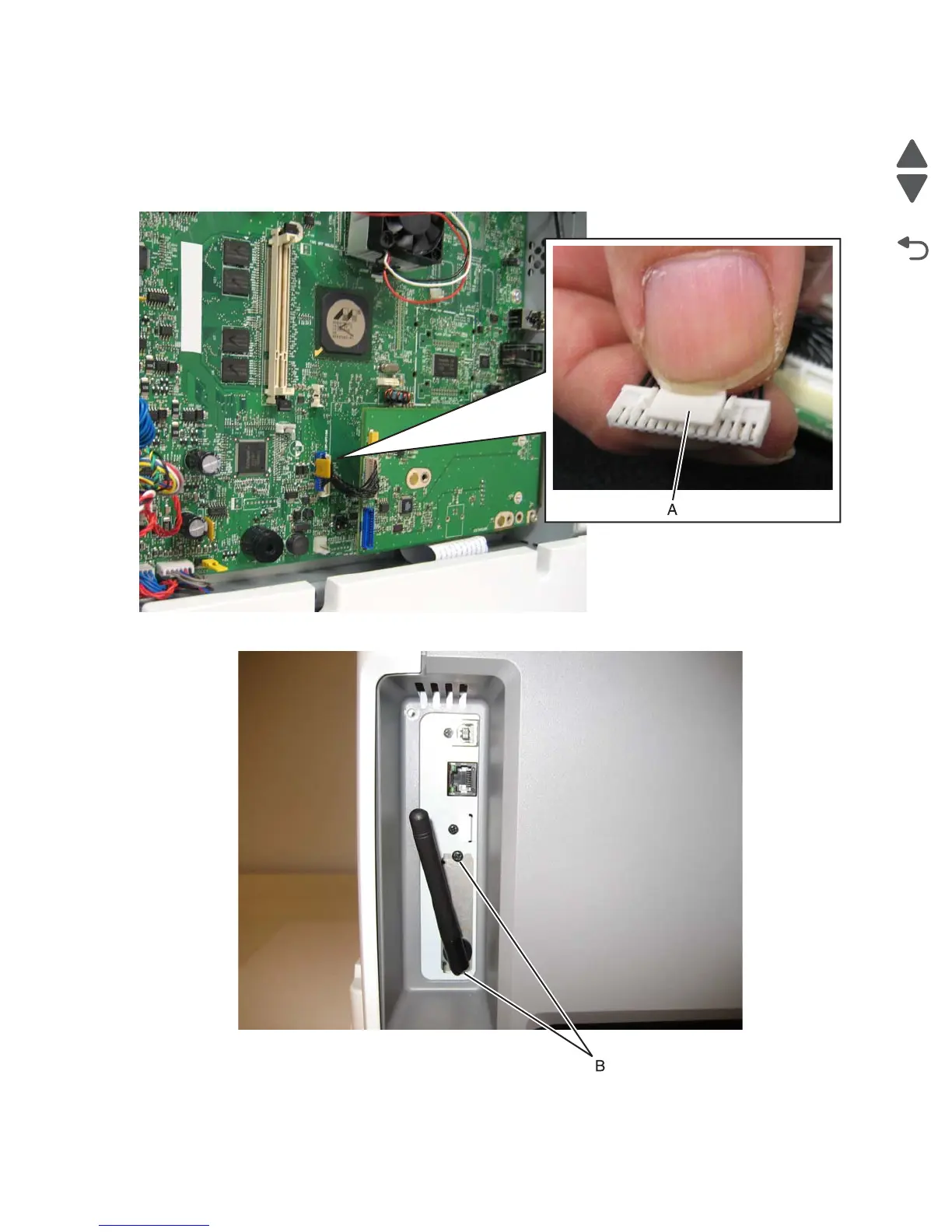

2. Disconnect the wireless cable from the system board at J5 (A), by squeezing the tabs at either end

together.

3. Remove the two screws (B) that secure the card into place.

Default Chapter3
