Diagnostic information 2-109
5026

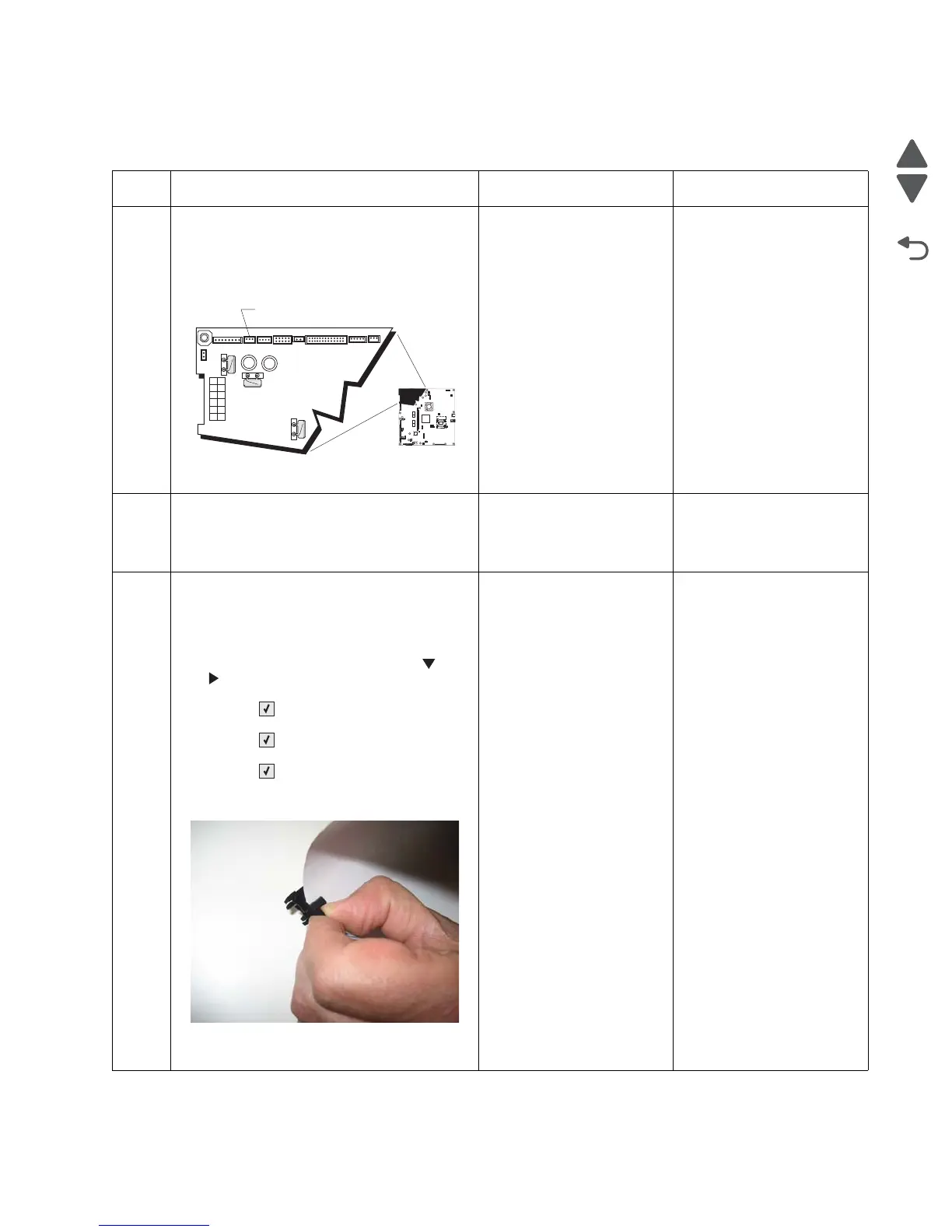

920.17—POST (power-on self test)—Output bin cable not connected error service
check
Step Questions / actions Yes No
1 Turn the printer off, and then remove the rear
frame cover. See “Rear frame cover
removal” on page 4-33.
Reseat the bin full sensor cable in connector
JBIN1 (A).
Does the error clear?
Problem resolved. Go to step 2.
2
Check the bin full sensor cable in connector
JBIN1 for pinch points and any other damage
to the cable or connector.
Is the cable damaged?
Replace the bin full sensor
with cable. See “Bin full
sensor removal” on
page 4-53.
Go to step 3.
3
1. Disconnect the cable in the JBIN1
connector.
2. Connect the new bin full flag cable in the
JBIN connector.
3. Bring the printer up in Diagnostic menu
(turn off the printer, press and hold and
. and turn on the printer).
4. Select SENSOR TESTS, and press
Select ().
5. Select Other Sensors, and press
Select ().
6. Select Bin Full Test, and press
Select ().
7. Activate the new bin full sensor by placing
a sheet of paper in the sensor.
Did the bin full sensor change from Open to
Closed?
Replace the bin full sensor
and cable. See “Bin full
sensor removal” on
page 4-53.
Replace the system board.
See “System board
removal” on page 4-153.
1
JSB1
JBIN1
JFAN1
JFUSER1
JBOR1
JHVPS1
JMIRR1
JBLW1
JCVR1JCVR1
JLVPS2
JCARTP1
JCARTS1
JCARTS2
JCARTP2
JDVR1
JTPS1
JOPT1
JFDS1
JINT1
JFDPCK1JTRAY1JSEC1
JDX1
JT12
J5
JDIMM1
JOPP1
JT1
JUSB1
JBOOT1
JFMUSB1
J49
JTWF1
JTDBUG1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
JTLBT1
JPH1
F5
F6
F7
F9
F10
F12
F13
F14
1
1
J10
1
1
A
