Lexmark C734dn - Output bin Extension Cover Removal

To Next Page

To Previous Page

Repair information 4-31

5026

Go Back

Output bin extension cover removal

See “Output bin extension cover” on page 7-3 for the part number.

1. Turn the printer around, so the back is toward you.

2. Rotate the output bin extension cover toward the front of the printer.

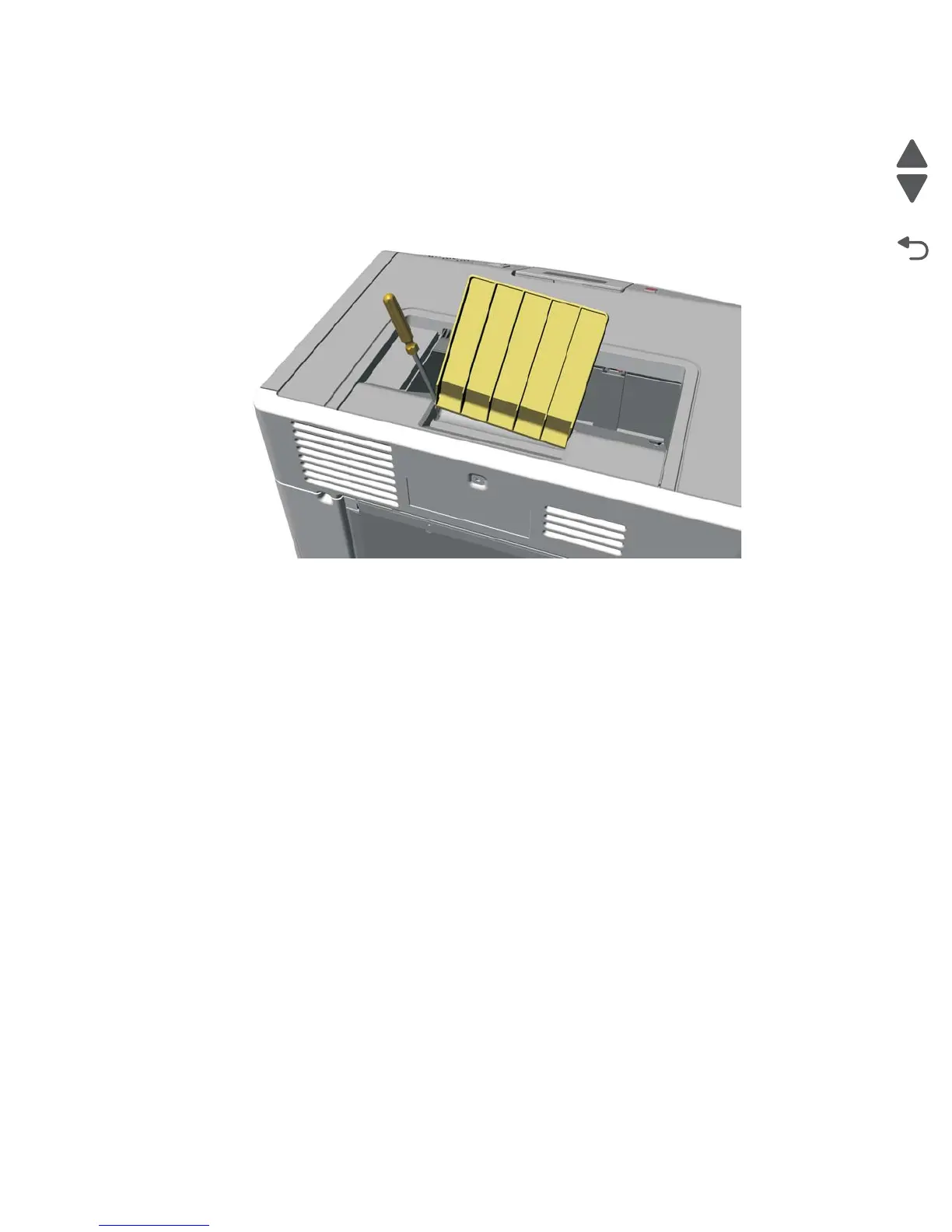

3. Use a flathead screwdriver to ease the posts from the holes on one side.
