Lexmark C734dn Service Manual

Diagnostic information 2-93
5026
Go Back
Previous
Next
900.05—Transfer module error service check
Step Questions / actions Yes No
1 1. Turn the printer off.
2. Remove the rear frame cover. See “Rear
frame cover removal” on page 4-33.

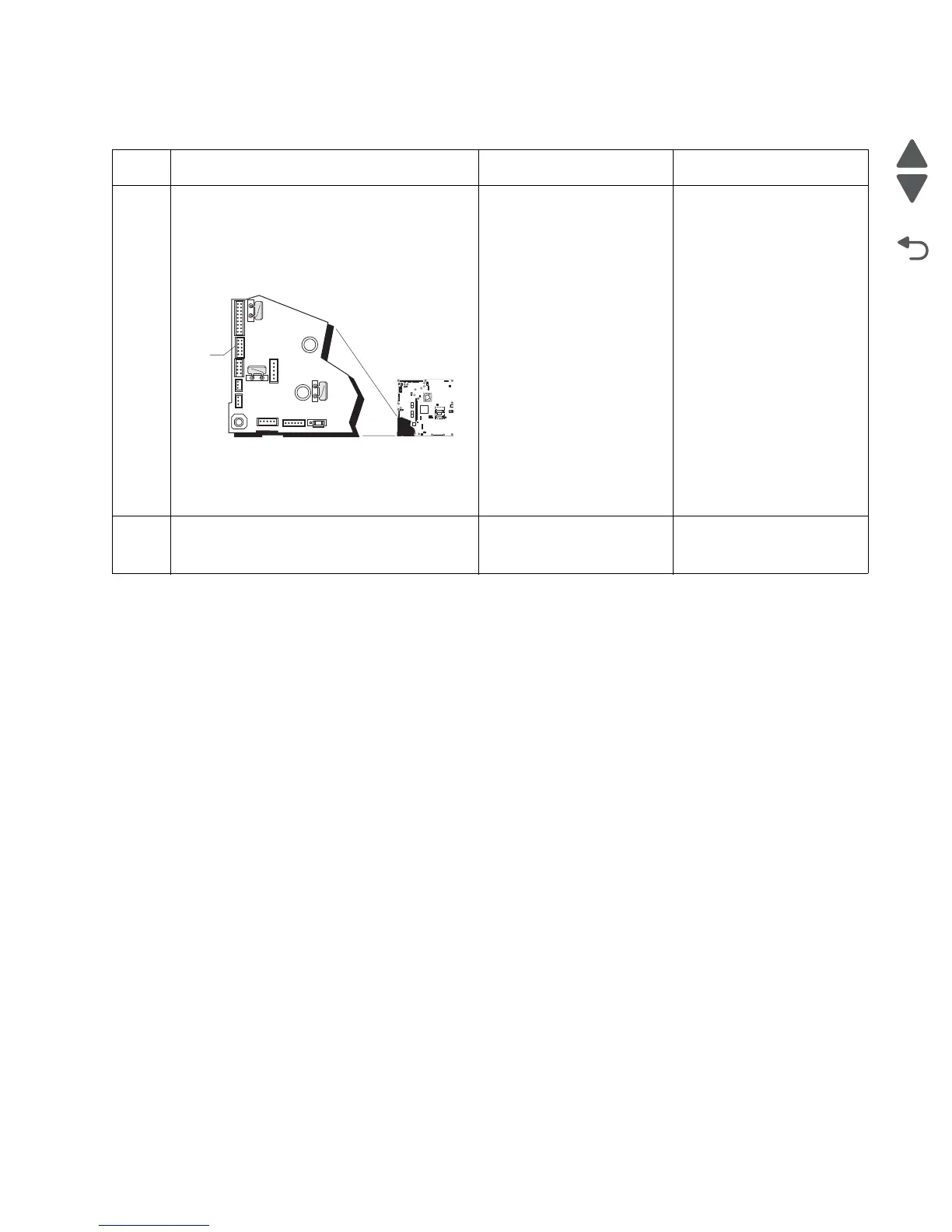

3. Check the transport cable in connector
JTPS1 (A) for proper connection to the
system board.
4. Open the front access door and check the
transport cable for pinch points and any
other damage to the cable or connector.
Is the cable damaged?
Replace the transport
cable. See “Transport
cable removal” on
page 4-170.
Go to step 2.
2
Replace the transfer module.
Does the error clear?
Problem resolved. Replace the system board.
See “System board
removal” on page 4-153.
1
JSB1
JBIN1
JFAN1
JFUSER1
JBOR1
JHVPS1
JMIRR1
JBLW1
JCVR1JCVR1
JLVPS2JLVPS2
JCARTP1
JCARTS1
JCARTS2
JCARTP2
JDVR1
JTPS1
JOPT1
JFDS1
JINT1
JFDPCK1JTRAY1JSEC1
JDX1
JT12
J5
JDIMM1
JOPP1JOPP1
JT1
JUSB1
JBOOT1
JFMUSB1
J49
JTWF1
JTDBUG1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
JTLBT1
JPH1
F5
F6
F7
F9
F10
F12
F13
F14
1
1
J10
1
1
A
