Lexmark C734dn - Fuser AC Cable Removal

To Next Page

To Previous Page

Repair information 4-105

5026

Go Back

Fuser AC cable removal

Note: The LVPS to fuser AC cable is black.

1. Remove the top cover assembly. See “Top cover assembly removal” on page 4-43.

2. Turn the top cover assembly over.

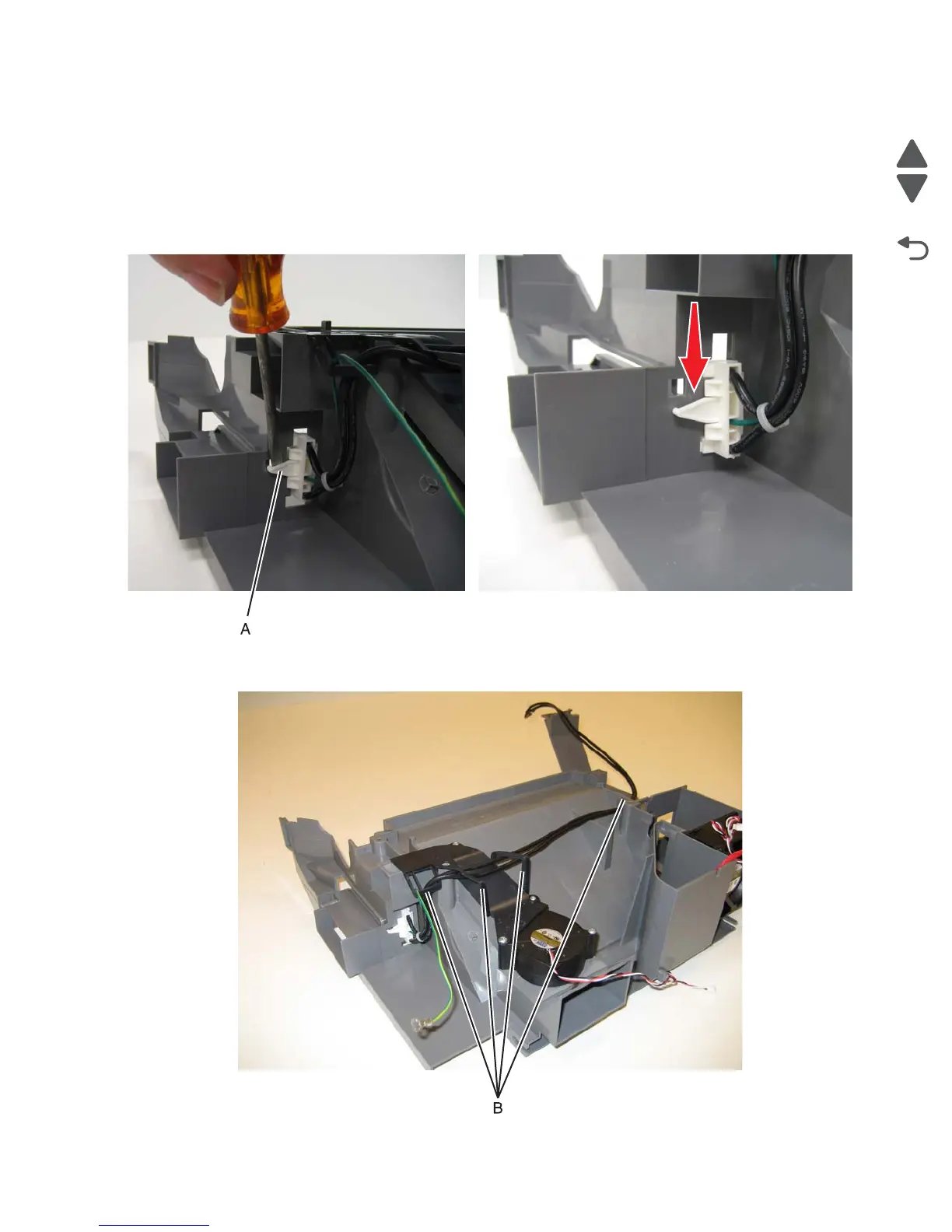

3. Lift the locking latch (A) on the connector, slide the connector down, and remove the connector from the

keyed hole.

4. Remove the cable from the cable openings (B).

Note: Observe the routing of the cable for reinstallation.
