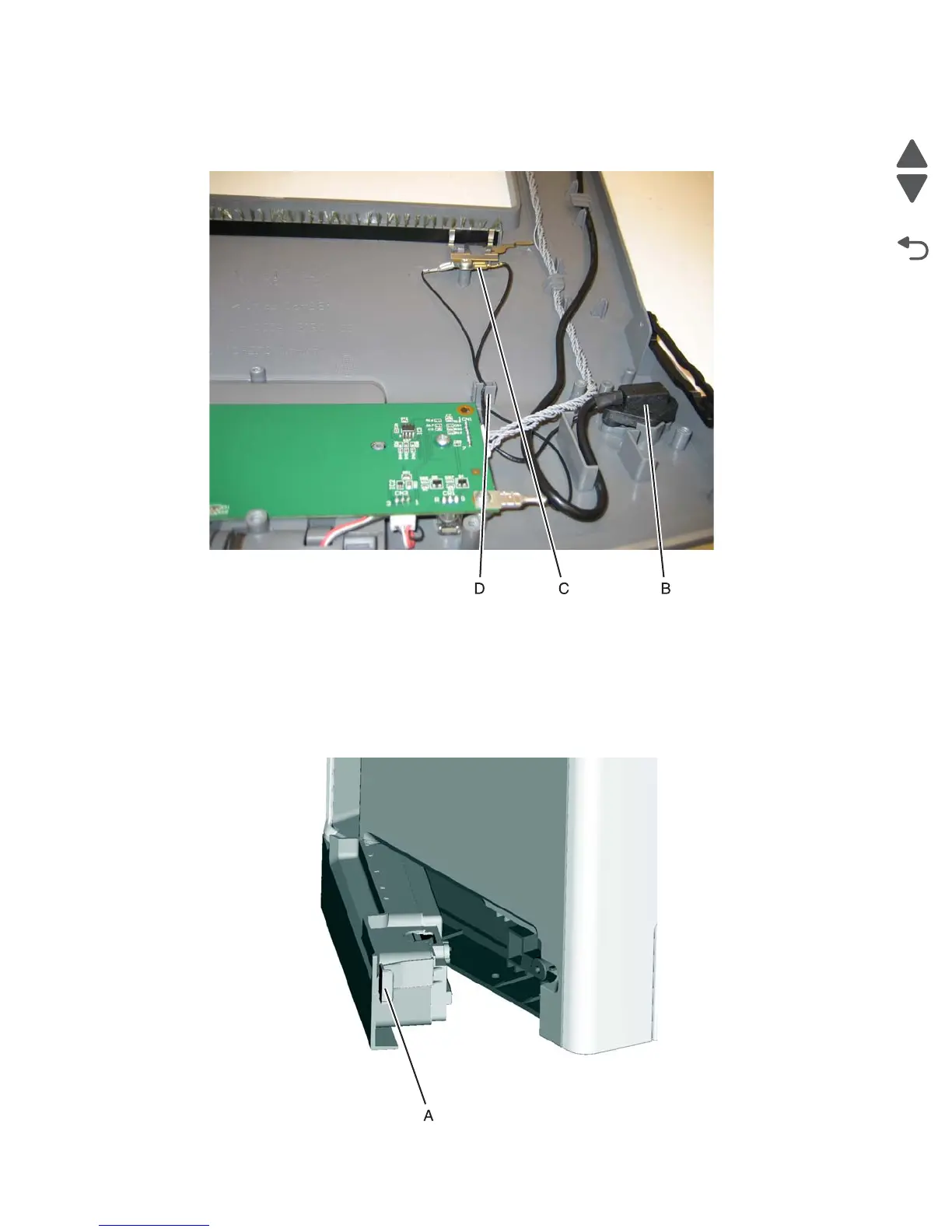

3. Disconnect the cable connector (B),
4. Disconnect the ground cable (C) from the grounding assembly, and release the ground cable from the
cable clamp (D).
5. Remove the USB connector.
Waste toner assembly removal
Not a FRU.
1. Press the waste toner release latch (A).
2. Swing the front of the waste toner assembly away from the printer, and remove.
