Front door assembly removal
See the part number for the Front door assembly for the specific model you need on page 7-5.
1. Remove the front access cover assembly. See “Front access cover assembly removal” on page 4-19.
2. Remove the rear frame cover. See “Rear frame cover removal” on page 4-33.
3. Remove the LVPS. See “Low-voltage power supply (LVPS) removal” on page 4-112.

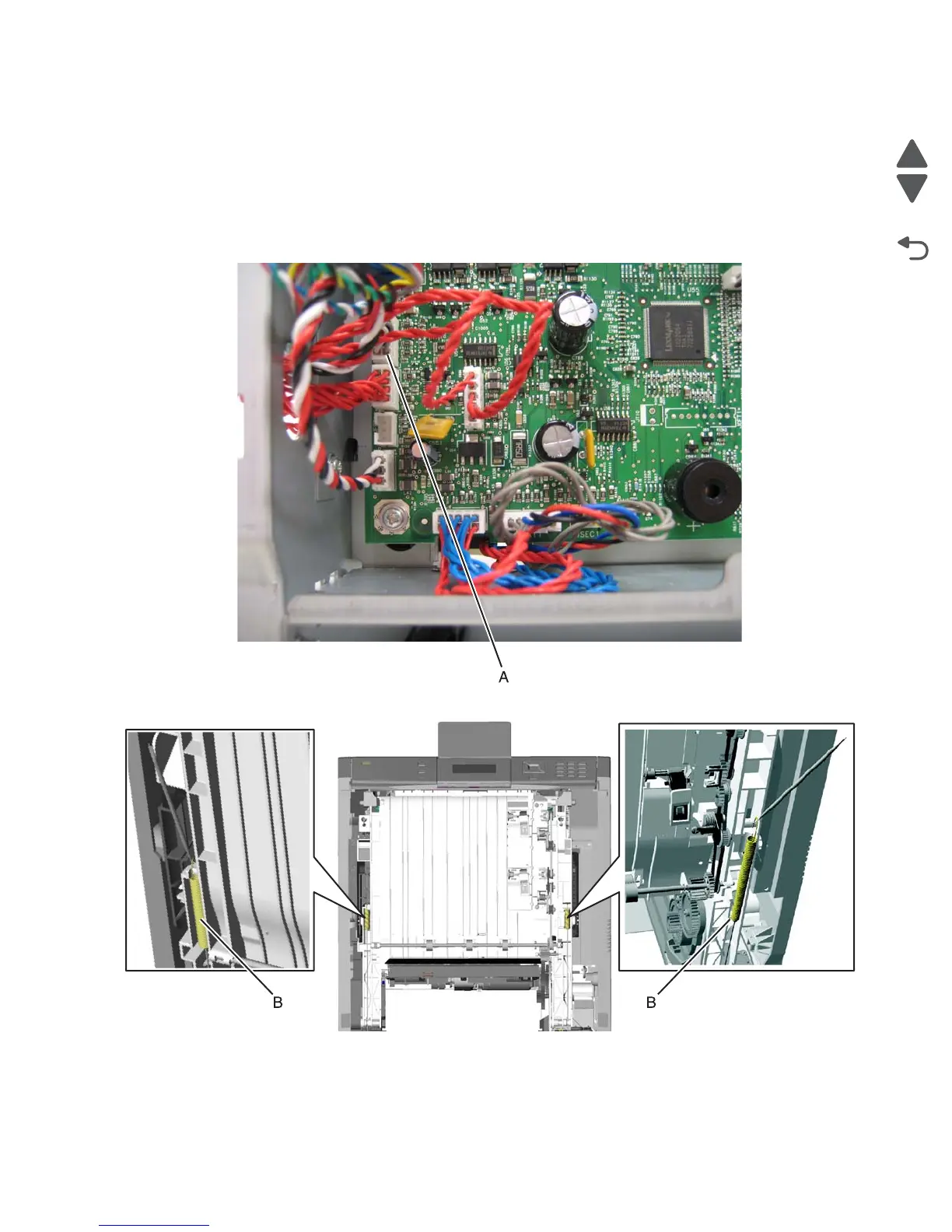

4. Disconnect the JTPS1 cable (A) from the system board.
5. Release the left and right front door assembly cable springs (B) from the front door assembly.
