Operator panel ground cable assembly removal
1. Remove the top access cover assembly. See “Top access cover assembly removal” on page 4-40.

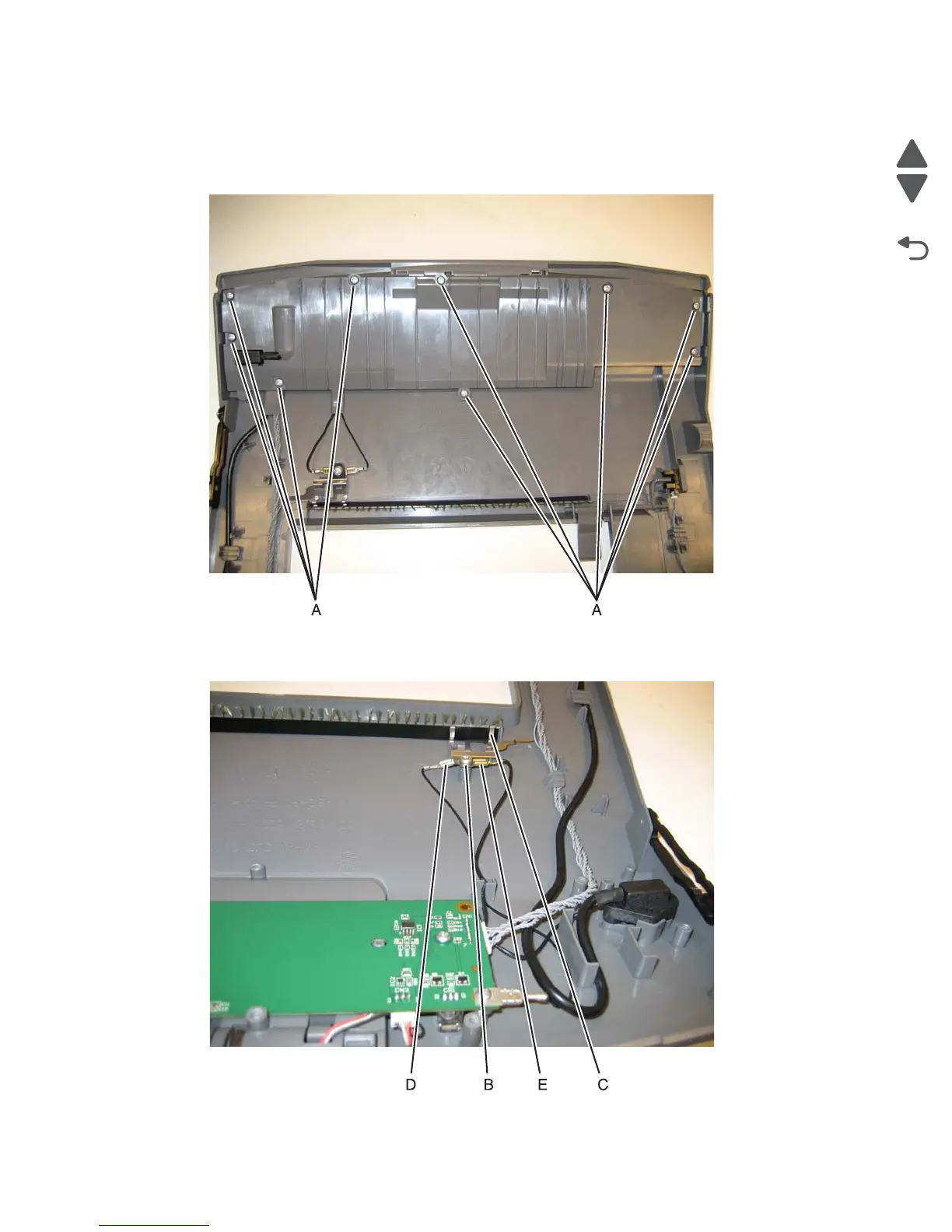

2. Remove the nine screws (A), and remove the position guide.
3. Remove the screw (B), and remove the ground cable connector.
4. Disconnect the ground cable (C).
5. Disconnect the operator panel ground cable assembly (D) and the USB connector ground cable (E).
Installation note: Note the routing of the cable and the cable retainers.
