Repair information 4-123

5026

Go Back

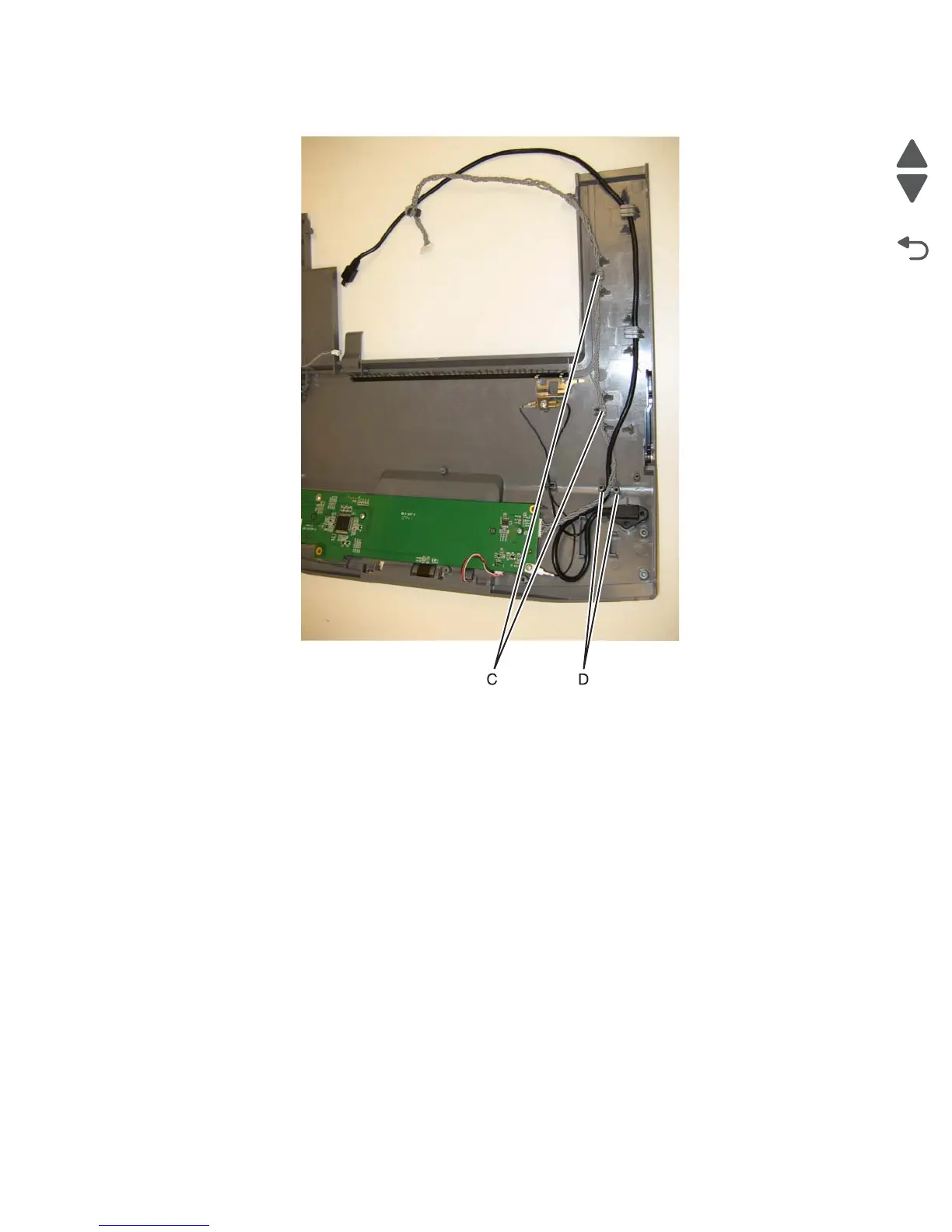

4. Remove the cable from the two cable retainers (C) and routing posts (D).

Installation note:

Note the routing of the cable and the cable retainers.
