Repair information 4-127
5026
Paper pick mechanism assembly removal
See “Paper pick assembly” on page 7-5 for the part number.
1. Remove the paper tray.
2. Remove the waste toner assembly. See “Waste toner assembly removal” on page 4-174.
3. Remove the rear frame cover. See “Rear frame cover removal” on page 4-33.

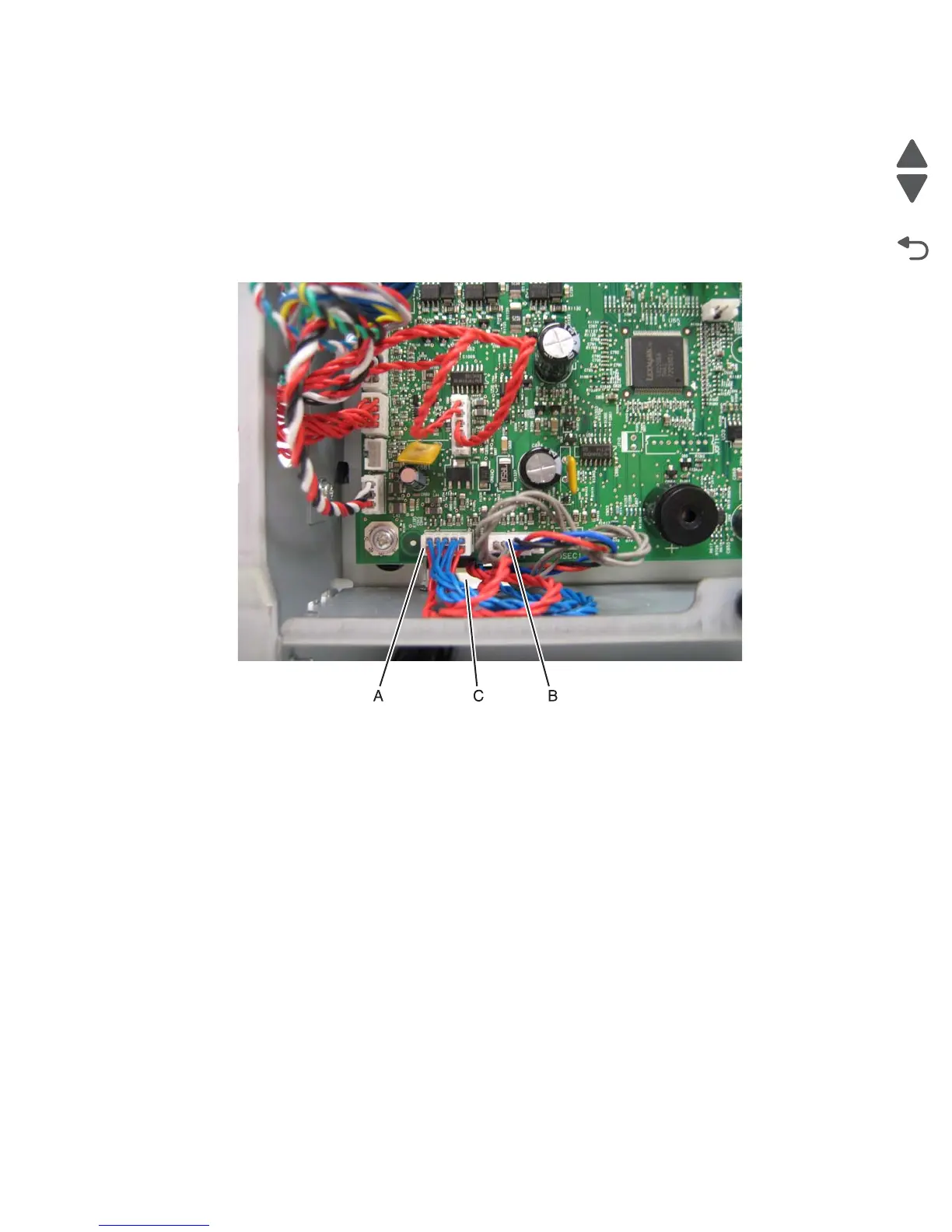

4. Disconnect the connector in JFDPCK1 (A) and JTRAY1 (B) on the system board.
5. Push the cables through the hole in the frame (C).
6. Open the front access cover.
