4-126 Service Manual

5026

Go Back

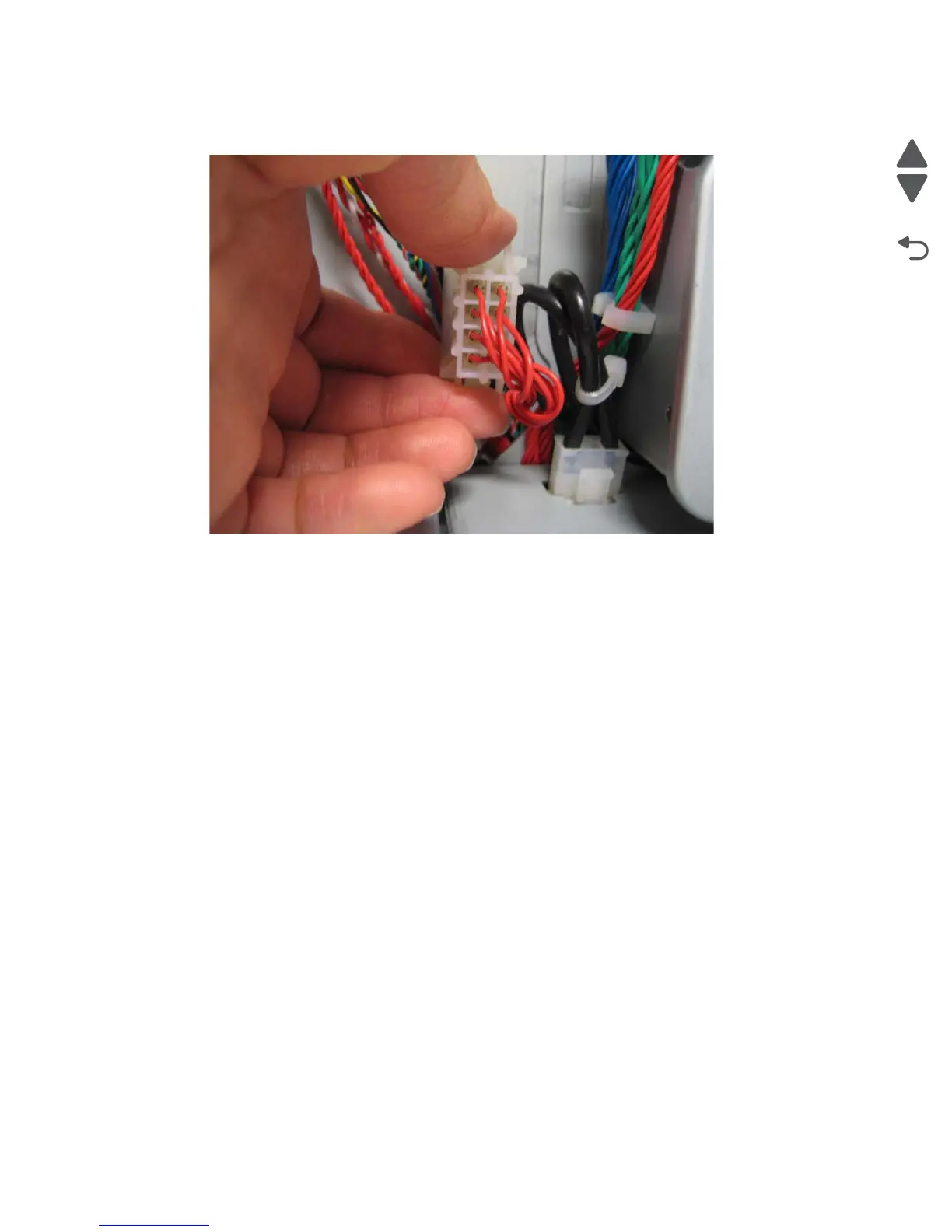

6. Press the tabs together to remove the option cable connector.

Note: Be sure to note the cable routing for reinstallation.
