144.xx—Motor (EP drive assembly middle cartridge) error service check
Step Questions / actions Yes No
1 1. Turn the printer off.
2. Remove the rear frame cover. See “Rear
frame cover removal” on page 4-33.

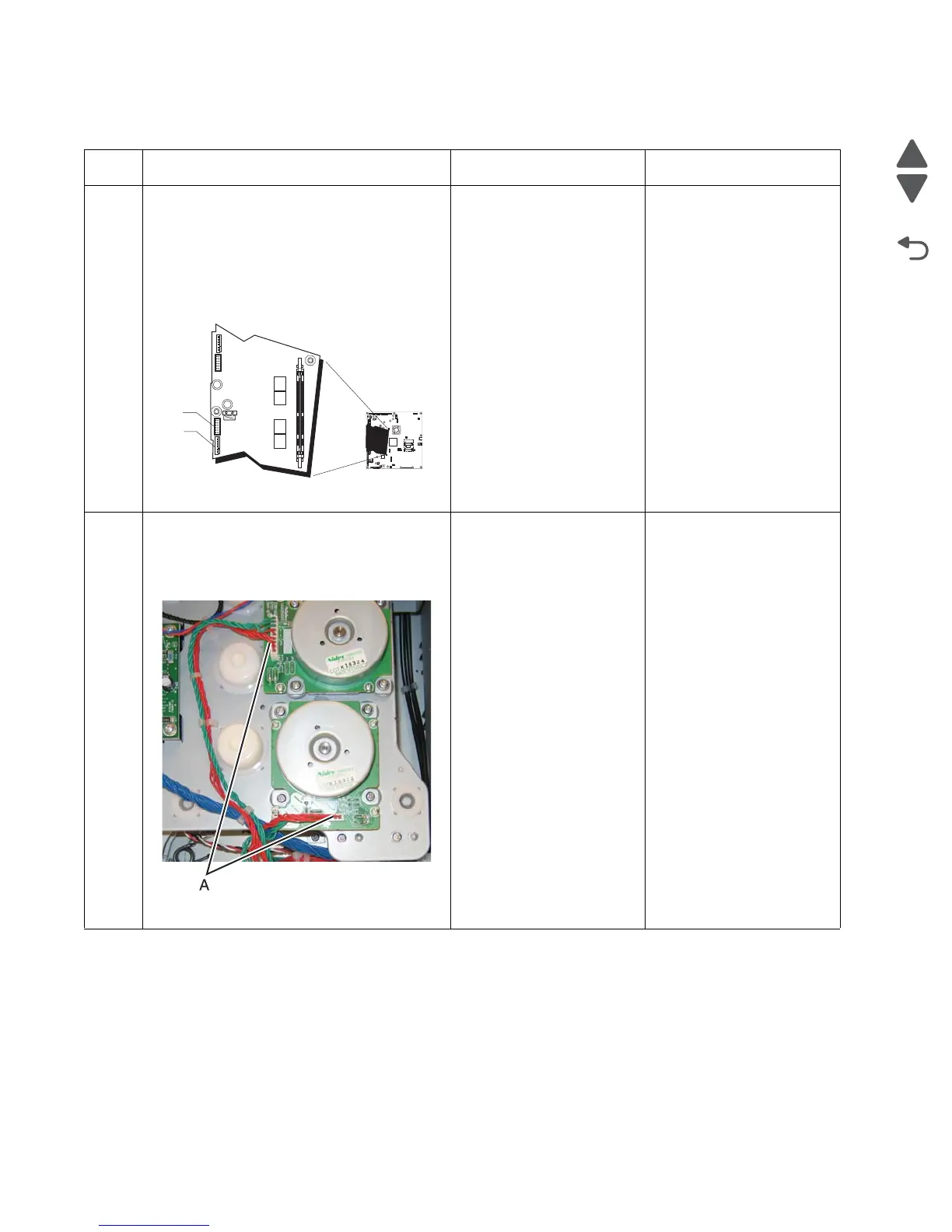

3. Check the cables in connector JCARTP2
and JCARTS2 (A) (cartridge motor 2/3
cable) for proper connection to the system
board, for cable pinch points, and for any
other damage to the cable or connector.
Is the cable damaged?
Replace cartridge motor 2/
3 cable. See “Cartridge
motor 2/3 cable removal”
on page 4-64.
Go to step 2.
2
Remove the right cover. See “Right cover
removal” on page 4-37. Check the cartridge
motor 2/3 cable for proper connection to the
EP drive assembly, pinch points for the cable,
or damage to the cable or connector (A).
Is either cable damaged?
Replace the cartridge
motor 2/3 cable. See
“Cartridge motor 2/3
cable removal” on
page 4-64.
Go to step 3.
