Diagnostic information 2-45
5026
2

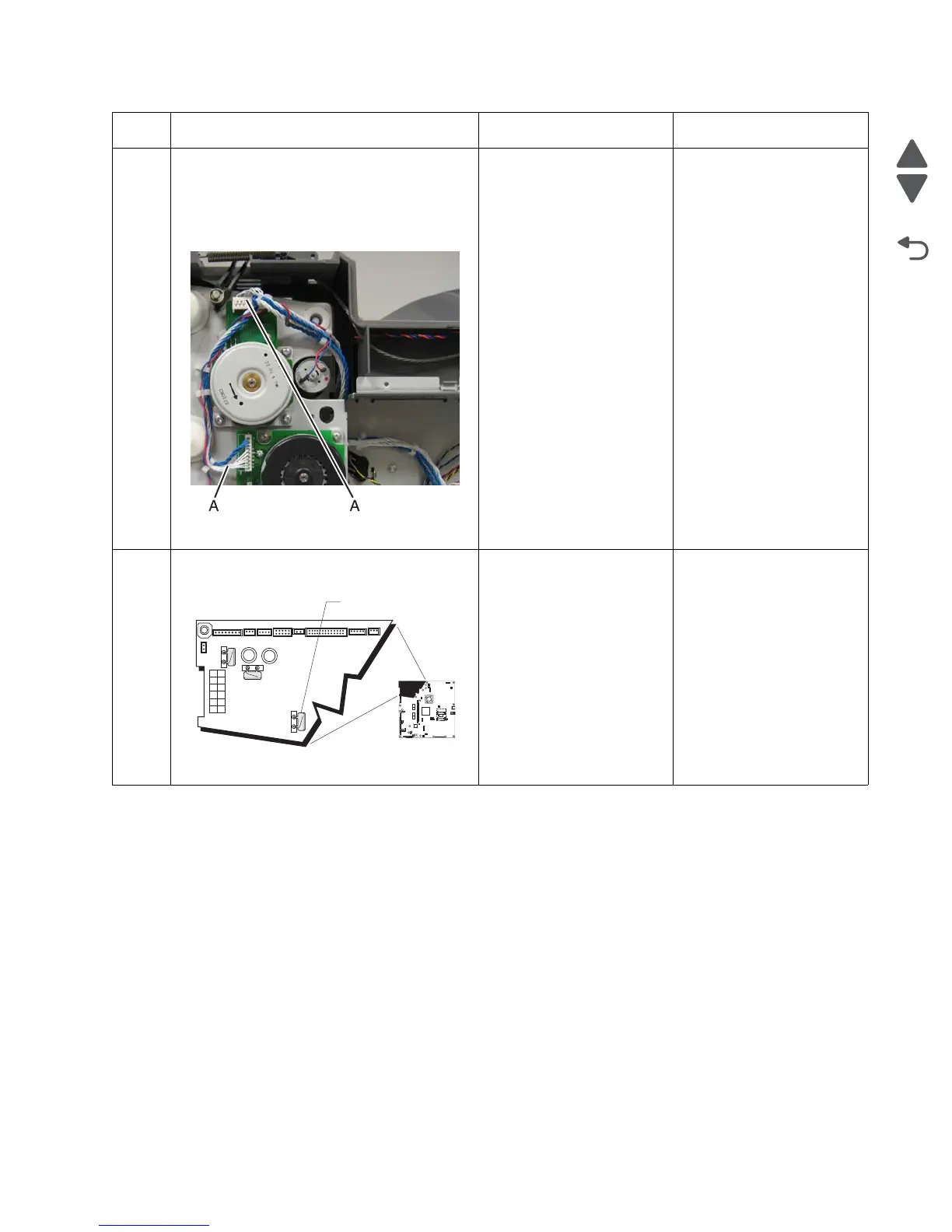

Remove the right cover. See “Right cover
removal” on page 4-37. Check the cartridge
motor 1/fuser motor cable (A0 for proper
connection to the EP drive assembly, for
pinch points for the cable, or damage to the
cable or connector.
Is either cable damaged?
Replace the cartridge
motor 1/fuser motor cable.
See “Cartridge motor 1/
fuser cable removal” on
page 4-62.
Go to step 3.
3
Measure the resistance across fuse F7 on the
system board.
Is the fuse blown?
Replace the system board.
See “System board
removal” on page 4-153.
Replace the EP drive
assembly. See
“Electrophotographic
(EP) drive assembly
removal” on page 4-82.
Step Questions / actions Yes No
1
JSB1
JBIN1
JFAN1
JFUSER1
JBOR1
JHVPS1
JMIRR1
JBLW1
JCVR1JCVR1
JLVPS2
JCARTP1
JCARTS1
JCARTS2
JCARTP2
JDVR1
JTPS1
JOPT1
JFDS1
JINT1
JFDPCK1JTRAY1JSEC1
JDX1
JT12
J5
JDIMM1
JOPP1
JT1
JUSB1
JBOOT1
JFMUSB1
J49
JTWF1
JTDBUG1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
JTLBT1
JPH1
F5
F6
F7
F9
F10
F12
F13
F14
1
1
J10
1
1
A
