Diagnostic information 2-59
5026
200.11, 250.03—Paper Jam error service check
Step Questions / actions Yes No

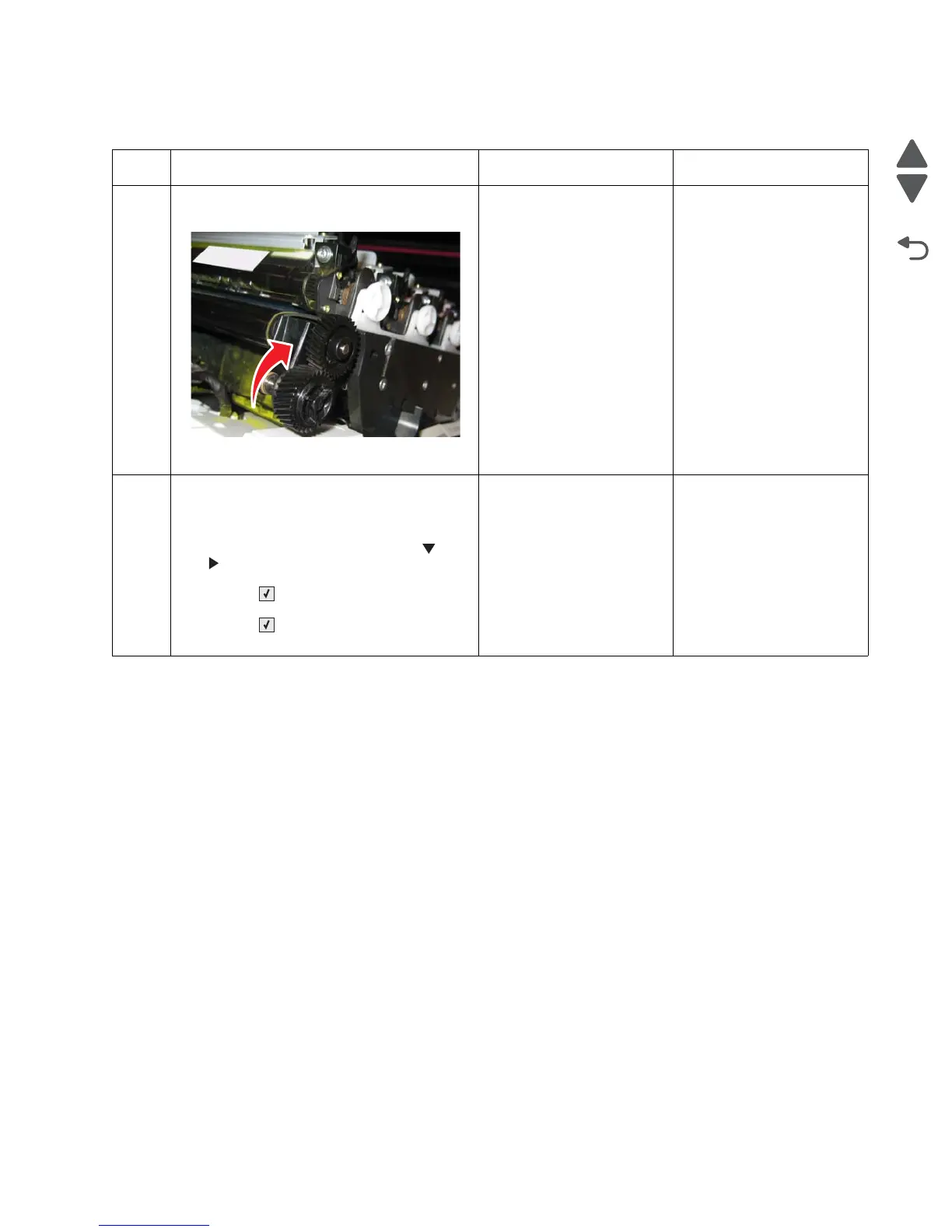

1 Open the front access door. Turn the
transport belt gear clockwise.
Did the transport belt move?
Go to step 2. Replace the transport belt.
See “Transfer module
removal” on page 4-168.
2
1. Disconnect the cable in connector
JFDPCK1 and connect the cables for the
new paper pick mechanism.
2. Bring the printer up in Diagnostics Menu
(turn off the printer, press and hold and
. and turn on the printer).
3. Select MOTOR TESTS, and press
Select ().
4. Select Align Motor Test, and press
Select ().
Can you hear the align motor run?
Go to “Input sensor
service check” on
page 2-128.
Replace the paper pick
mechanism. See “Paper
pick mechanism
assembly removal” on
page 4-127.
