Display detent spring

1. Remove the top access cover assembly. See “Top access cover assembly removal” on page 4-40.

2. Turn the top access cover assembly over.

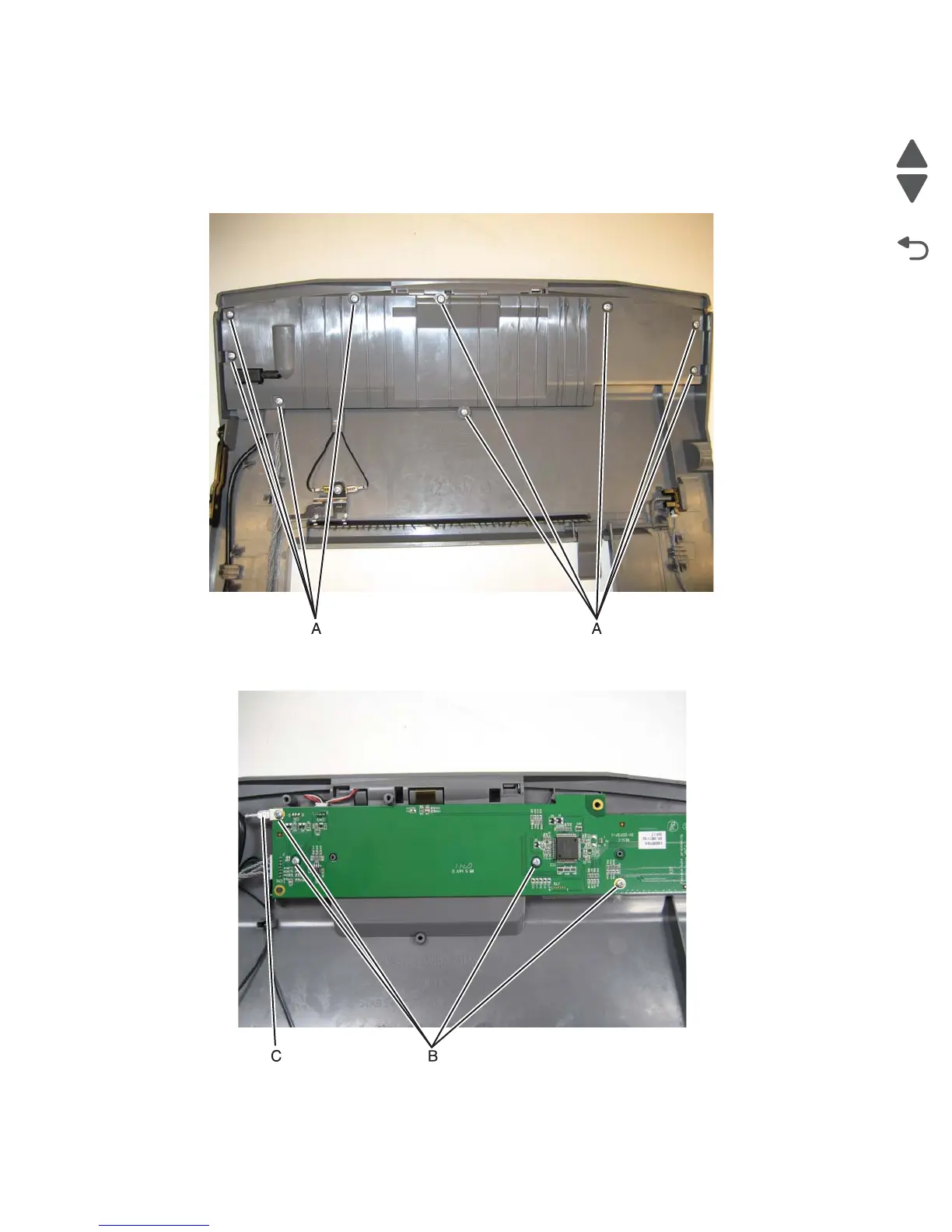

3. Remove the nine screws (A) securing the position guide.

4. Remove the four screws (B) from the operator panel card.

Note the position of the ground cable (C).
