4-54 Service Manual
5026
Cartridge guide wheel removal
Right cartridge guide wheel
Note: Only replace defective cartridge guide wheel(s).

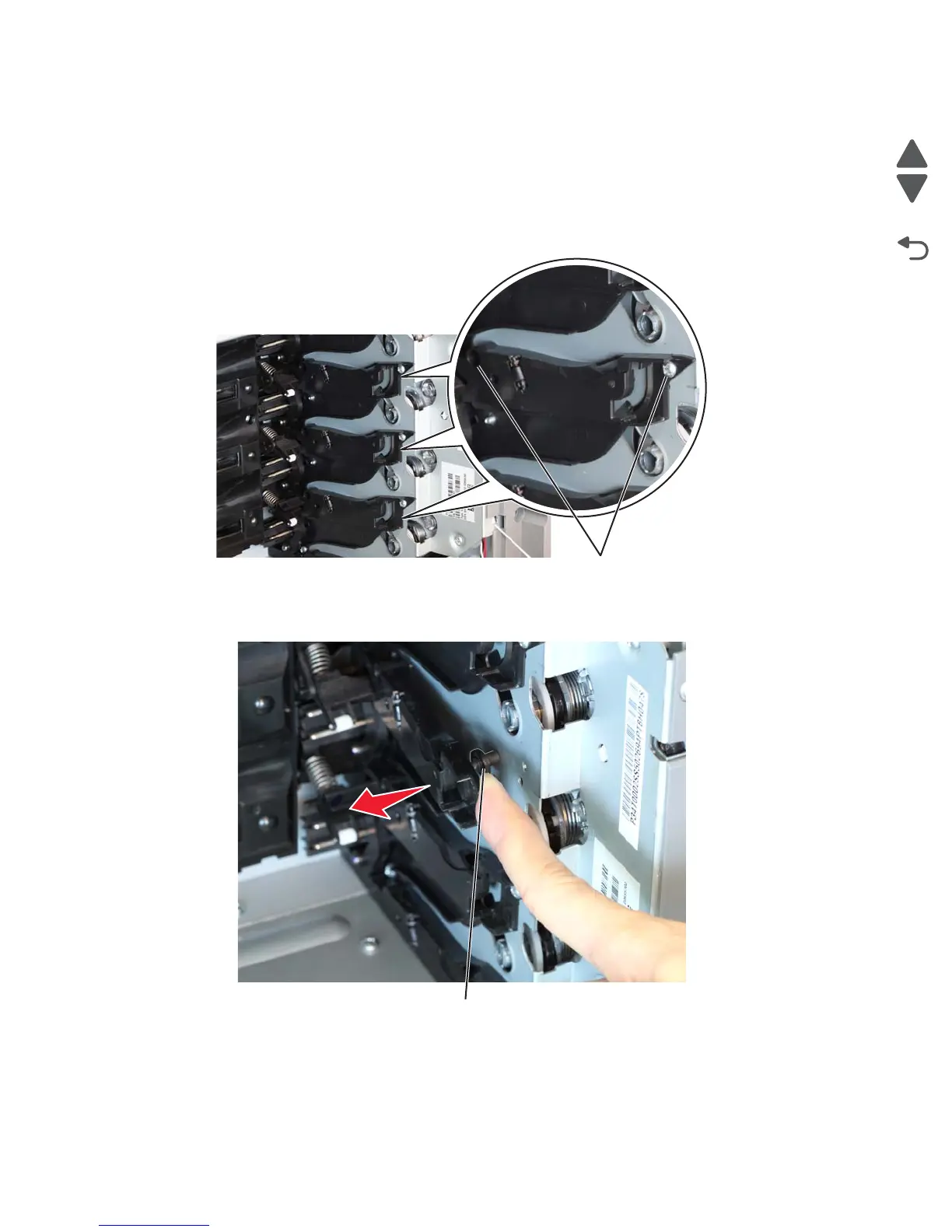

1. For yellow, cyan, or magenta:
a. Remove the two screws (A) from the cartridge guide.
b. Gently pull the cartridge guide, then remove the cartridge guide wheel (B).
CAUTION: Do not pull too hard on the cartridge guide to avoid damage.
To Next Page
