Cooling fan filter removal

1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-36.

2. Turn the cover over.

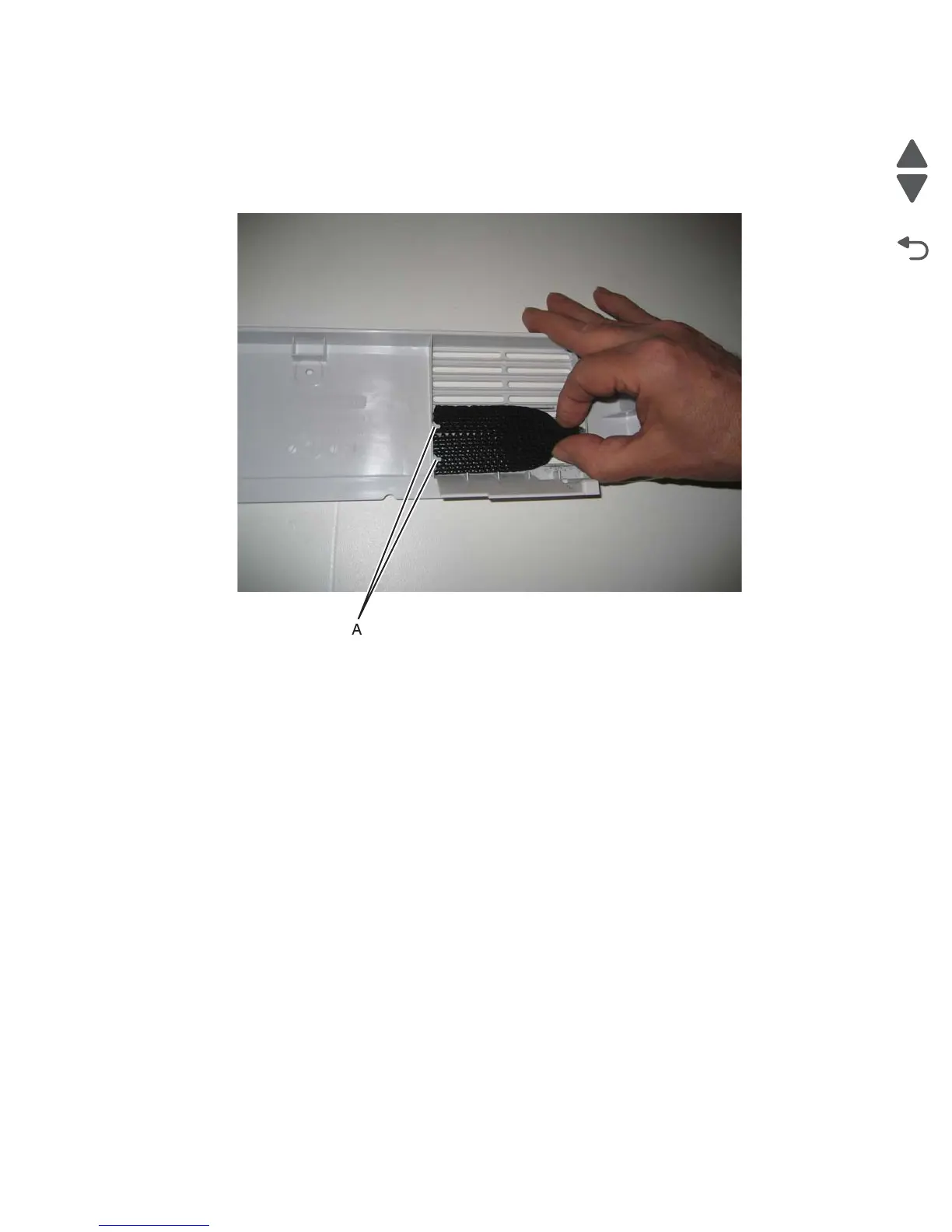

3. Squeeze the right side of the filter, and remove it from the tabs (A).
