Lexmark C734dn - Motor Driver Card Removal

To Next Page

To Previous Page

4-114 Service Manual

5026

Go Back

Motor driver card removal

1. Remove the right cover. See “Right cover removal” on page 4-37.

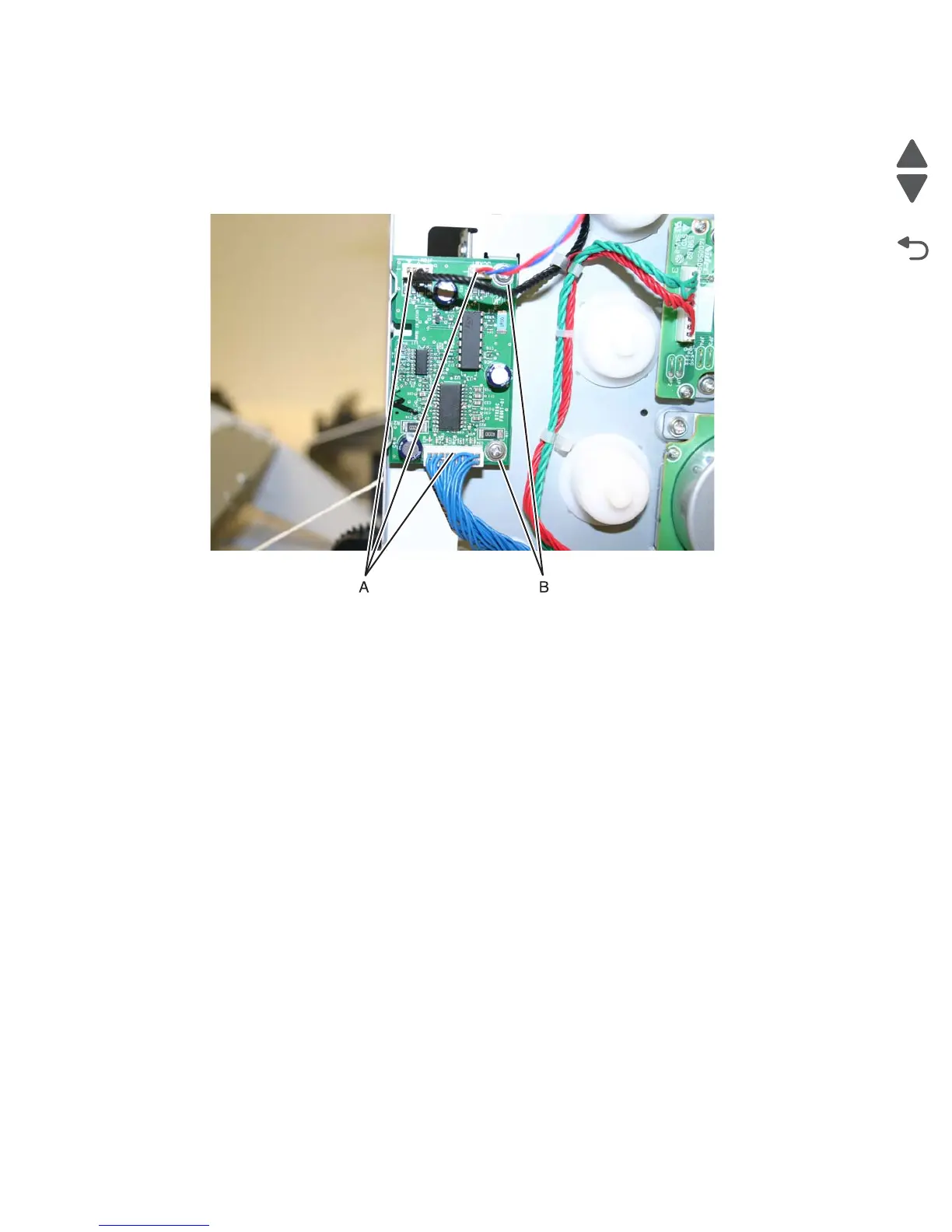

2. Disconnect the three cables (A).

3. Remove the two screws (B), and remove the motor driver card.
