Lexmark C734dn Service Manual

2-42 Service Manual
5026
Go Back
Previous
Next

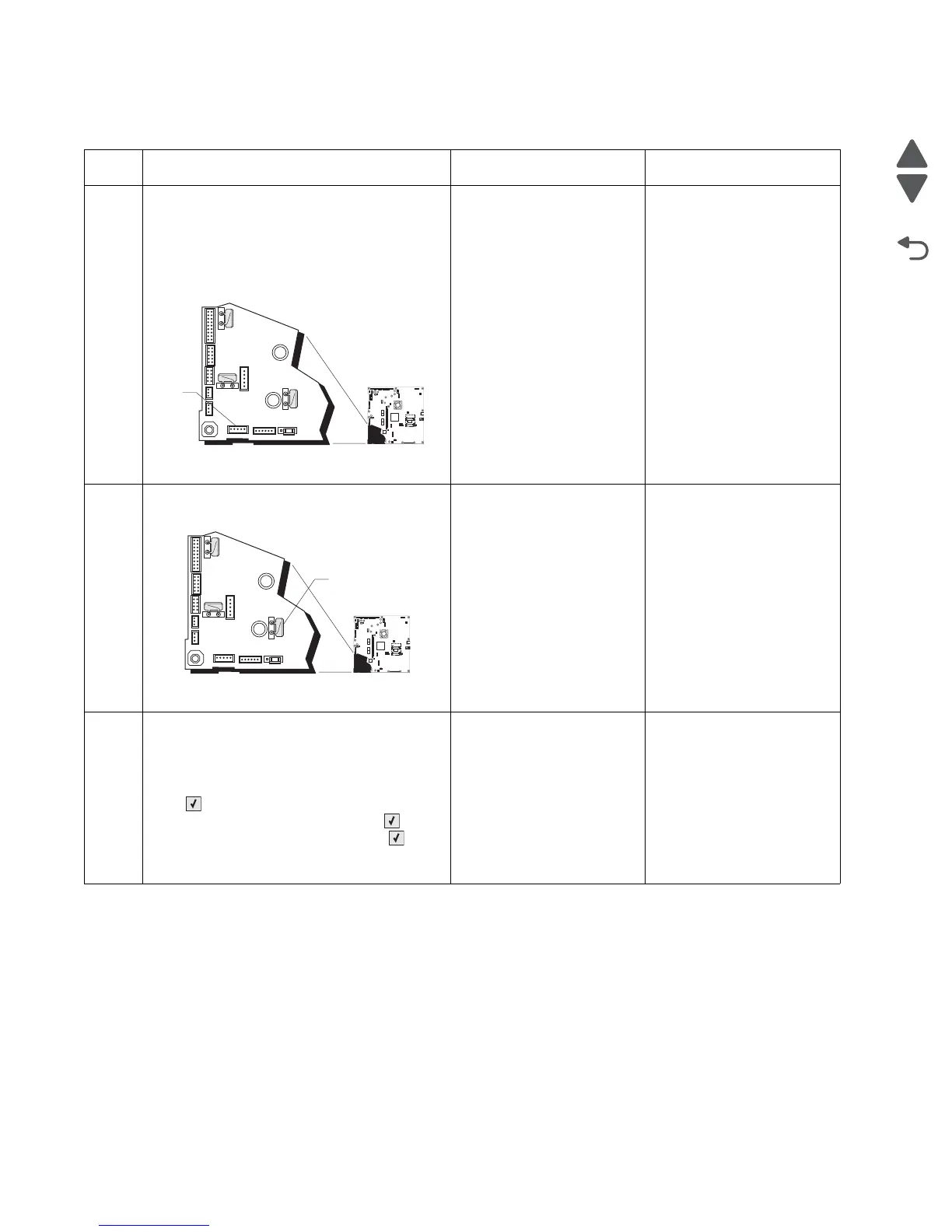

140.xx, 920.02—Autocomp (tray 1) motor error service check
Step Questions / actions Yes No
1 Turn the printer off, and then remove the rear
frame cover. See “Rear frame cover
removal” on page 4-33. Check the cable in
connector JFDPCK1 (A) for proper
connection to the system board, the cable for
pinch points, and the cable or connector for
any other damage.
Is the cable damaged?
Replace the paper pick
mechanism. See “Paper
pick mechanism
assembly removal” on
page 4-127.
Go to step 2.
2
Measure the resistance across fuse F13 on
the system board.
Is the fuse blown?
Replace the system board.
See “System board
removal” on page 4-153.
Go to step 3.
3
1. Disconnect the cable in the connector
JFDPCK1.
2. Connect the cable for the new paper pick
mechanism.
3. Select PRINT TESTS, and press Select
( ).
4. Select Tray 1 and press Select ( ).
5. Select Single, and press Select ( ).
Does the new pick motor turn before the feed
error occurred?
Replace the paper pick
mechanism. See “Paper
pick mechanism
assembly removal” on
page 4-127.
Replace the system board.
See “System board
removal” on page 4-153.
1
JSB1
JBIN1
JFAN1
JFUSER1
JBOR1
JHVPS1
JMIRR1JMIRR1
JBLW1
JCVR1
JLVPS2
JCARTP1
JCARTS1
JCARTS2
JCARTP2
JDVR1
JTPS1
JOPT1
JFDS1
JINT1
JFDPCK1JTRAY1JSEC1
JDX1
JT12
J5
JDIMM1JDIMM1
JOPP1
JT1
JUSB1
JBOOT1
JFMUSB1
J49J49
JTWF1
JTDBUG1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
JTLBT1
JPH1
F5
F6
F7
F9
F10
F12
F13
F14
1
1
J10
1
1
A
1
JSB1
JBIN1
JFAN1
JFUSER1JFUSER1
JBOR1
JHVPS1
JMIRR1
JBLW1
JCVR1JCVR1
JLVPS2
JCARTP1
JCARTS1
JCARTS2
JCARTP2
JDVR1
JTPS1
JOPT1
JFDS1
JINT1
JFDPCK1JFDPCK1JTRAY1JSEC1
JDX1
JT12
J5
JDIMM1
JOPP1
JT1
JUSB1
JBOOT1
JFMUSB1JFMUSB1
J49
JTWF1
JTDBUG1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
JTLBT1
JPH1
F5
F6
F7
F9
F10
F12
F13
F14
1
1
J10
1
1
A
