4-172 Service Manual

5026

Go Back

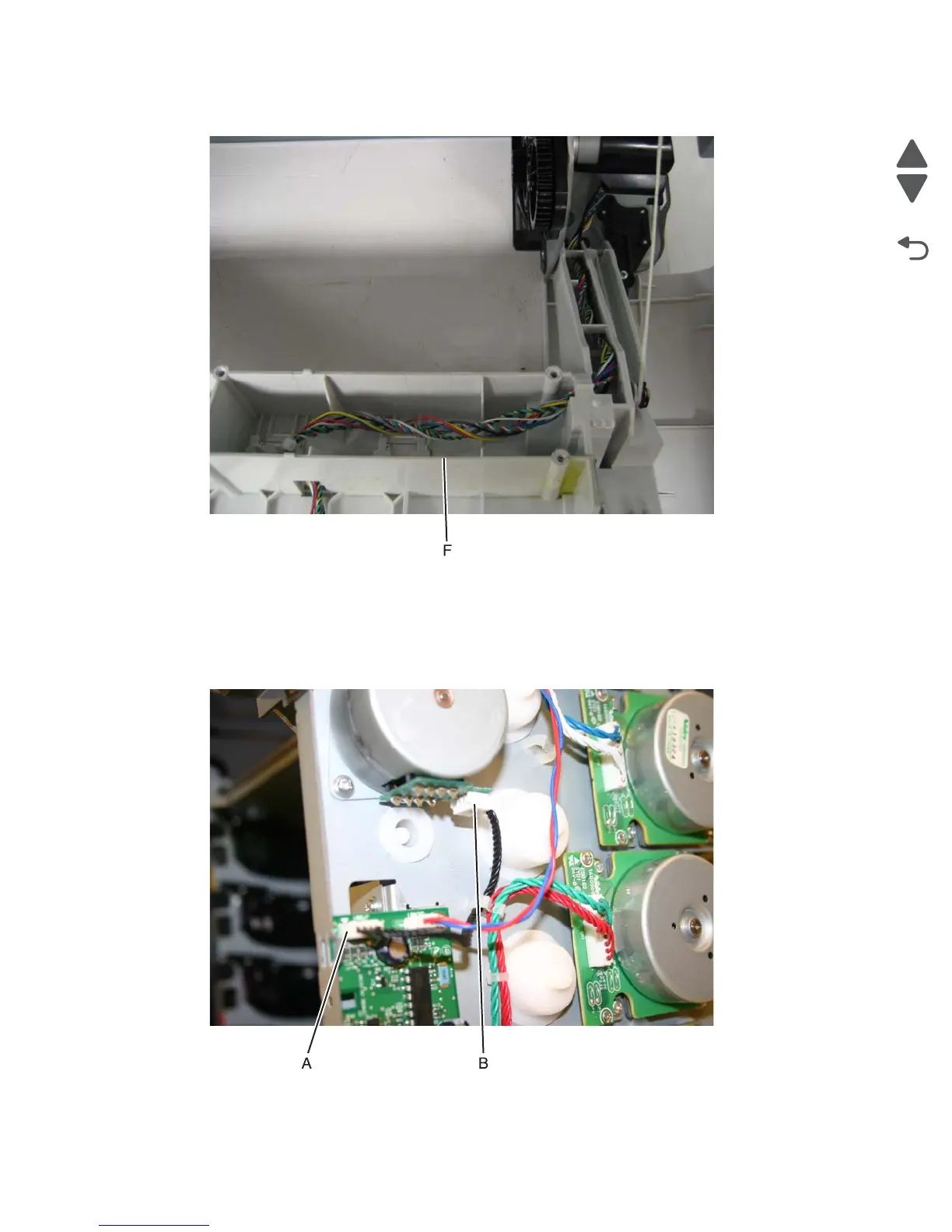

8. Remove the cable through the cable channel (F).

Transport motor cable removal

1. Remove the right cover. See “Right cover removal” on page 4-37.

2. Disconnect the cable from the transport motor drive (A).

3. Disconnect the cable from the transport motor (B).

4. Remove the cable.
