Contact springs kit removal
See “Contact springs kit, including:” on page 7-11 for the part number.
Charge roll contact spring removal
1.
Remove the HVPS. See “High-voltage power supply (HVPS) removal” on page 4-108.

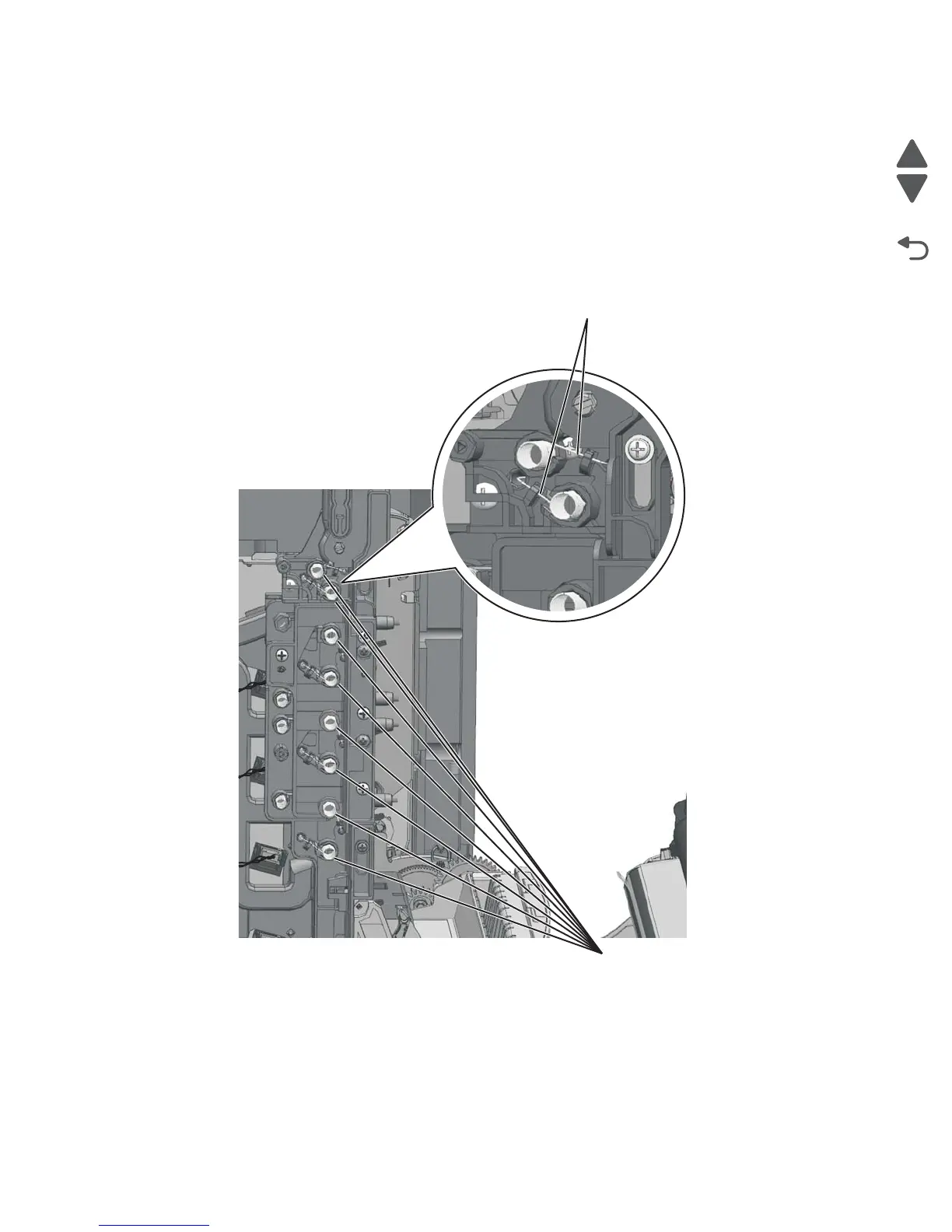

2. Remove the charge roll contact springs (A). Be sure to push the springs under the retainers that hold them
in place.
Installation note: Make sure the springs are behind the retainers when installing the new springs.
A
Retainer
