Cartridge motor 2/3 cable removal

1. Remove the LVPS. See “Low-voltage power supply (LVPS) removal” on page 4-112.

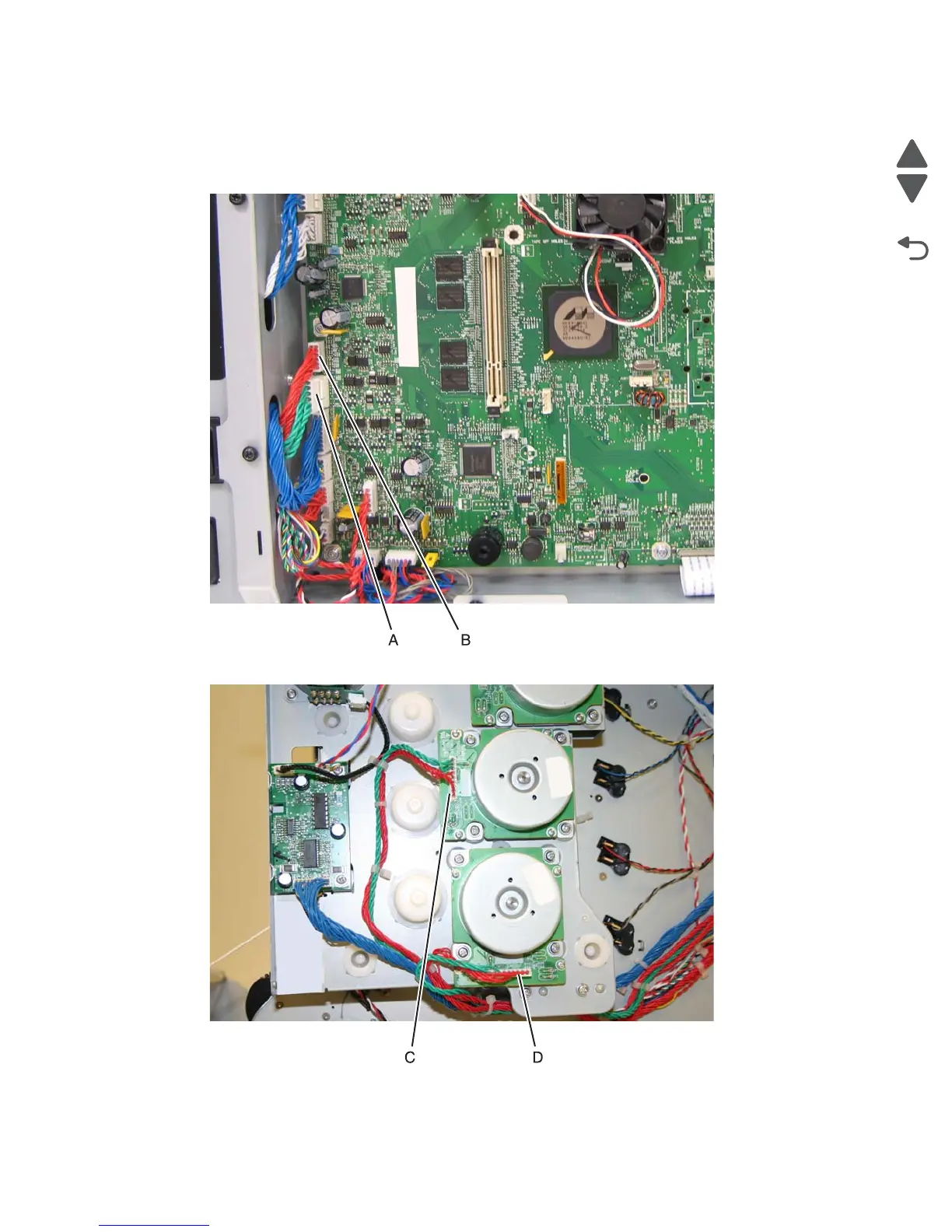

2. Disconnect the connectors in JCARTP2 (A) and JCARTS2 (B) on the system board.

3. Disconnect the connectors from the cartridge motor 2 (C) and cartridge motor 3 (D).
