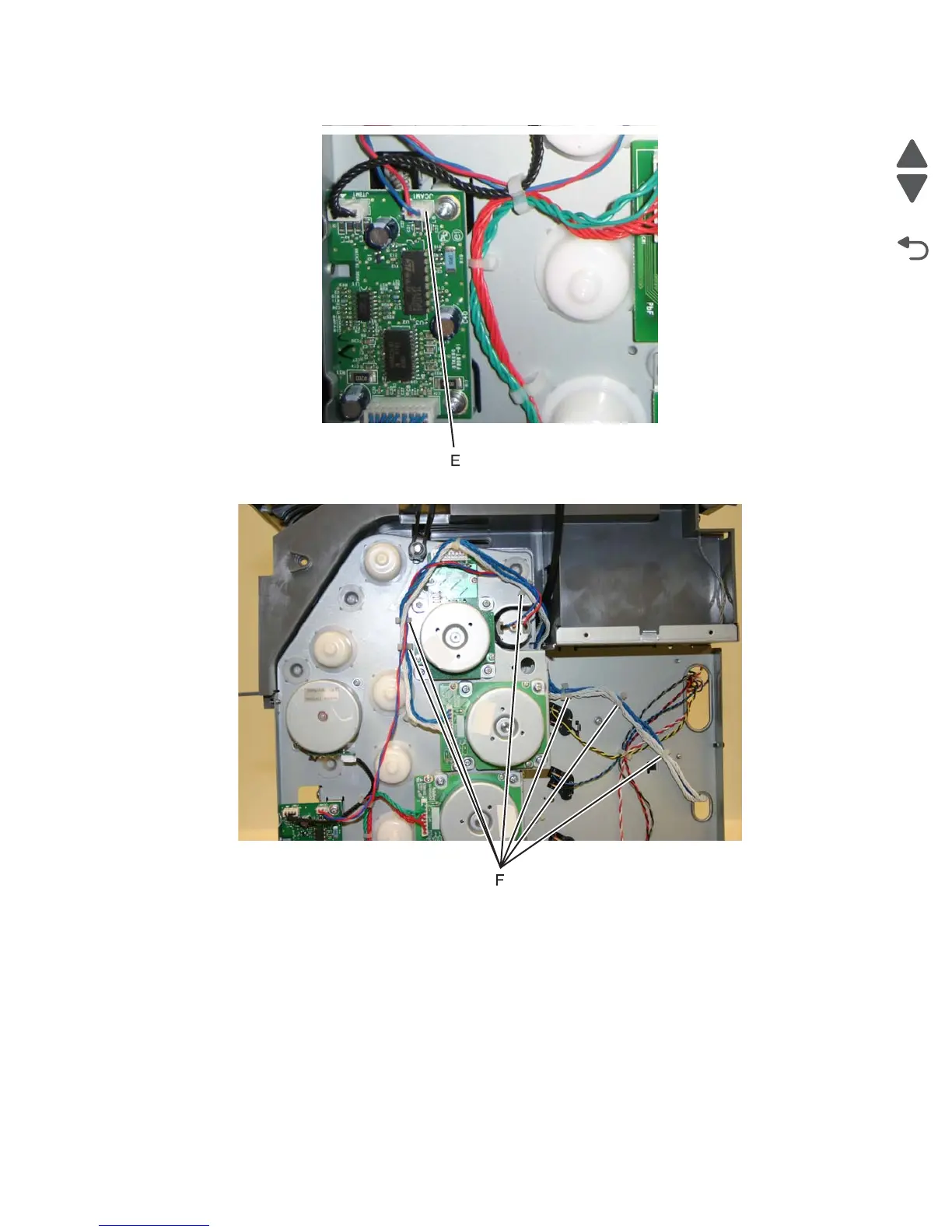

4. Disconnect the camshaft cable connector (E) from the motor card, and unwind the two cables.
5. Remove the cable from the six retainers (F).
Installation notes:
• Make sure you wrap the camshaft cable around the cartridge motor 1/fuser cable, as shown, to prevent the
cables from interfering with the motors or the motors damaging the cables.
• Note the routing of the cables and the cable retainers.
