7-14 Service Manual

5026

Go Back

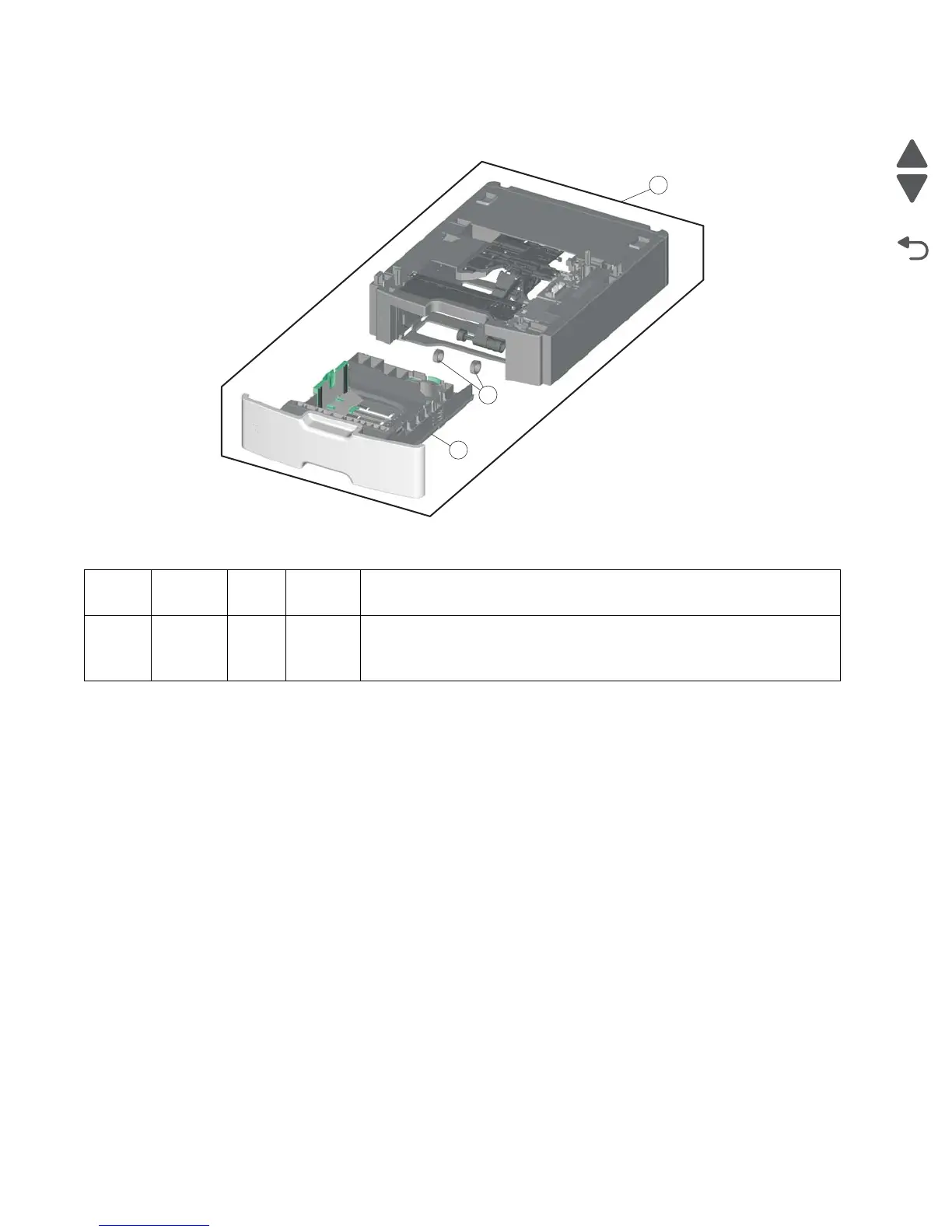

Assembly 8: Optional 550-sheet media drawer and tray

Index P/N

Units/

opt

Units/

FRU

Description

8—1 40X5140 1 1 550-sheet tray option (drawer and tray assembly)

2 40X5168 2 2 Pick arm roll, 550-sheet tray

3 40X5141 1 1 550-sheet tray assembly

Default Chapter3
