Lexmark C734dn Service Manual

2-104 Service Manual
5026
Go Back
Previous
Next

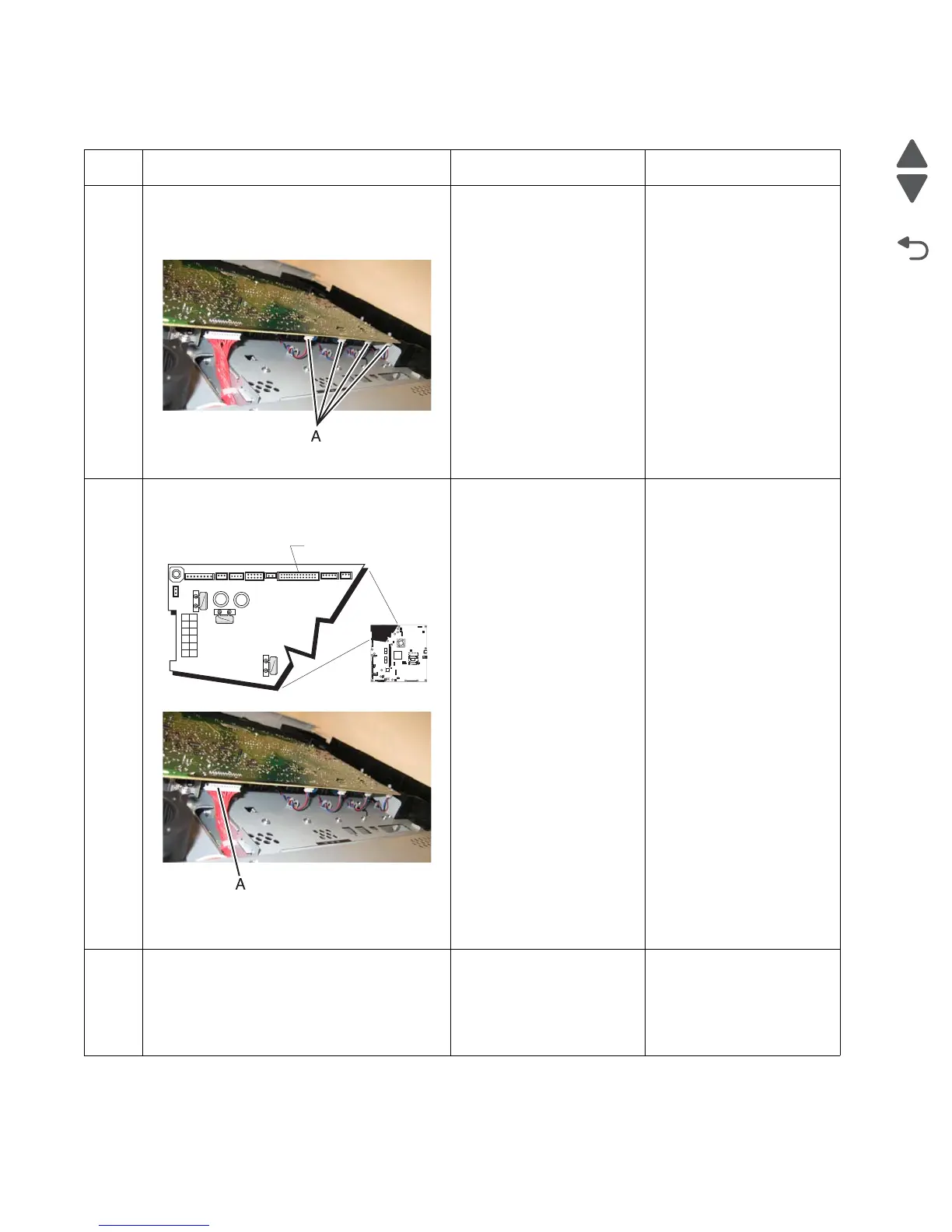

920.12—POST (power-on self test)—One sensor not connected error service check
Step Questions / actions Yes No
1 Remove the left cover. See “Left cover
removal” on page 4-21. Check all the toner
level sensor cables connected to the rear of
the HVPS.
Are any of the cables damaged?
Replace the damaged
sensor. See “Toner level
sensor removal” on
page 4-160.
Go to step 2.
2
Disconnect the cable in the connector
JHVPS1 from the system board and the
HVPS.
Check for the following continuity.
Is continuity present?
Go to step 3. Replace the HVPS cable.
See “High-voltage power
supply (HVPS) cable
removal” on page 4-110
3
Reconnect the HVPS cable. Disconnect one
of the toner level sensors and POR the
printer.
Does the 920.12 error occur again?
Replace the toner level
sensor. See “Toner level
sensor removal” on
page 4-160.
Repeat the step for the
other toner level sensors.
After all the sensors are
tested without the 920.12
recurring, the problem is
resolved.
