Cartridge motor 1/fuser cable removal

1. Remove the LVPS. See “Low-voltage power supply (LVPS) removal” on page 4-112.

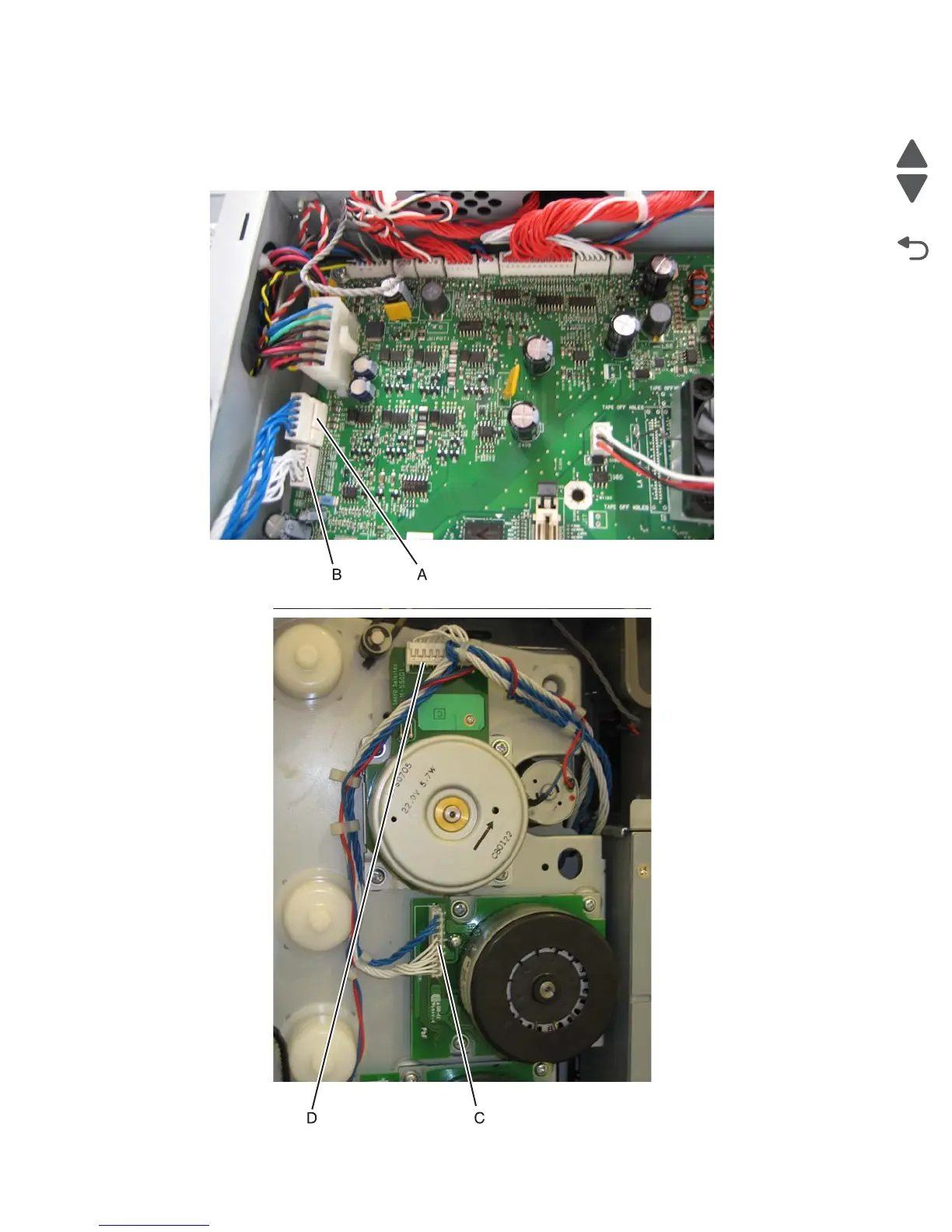

2. Disconnect the connectors in JCARTP1 (A) and JCARTS1 (B) on the system board.

3. Disconnect the connectors from the cartridge motor 1 (C) and the fuser motor (D).
