4-32 Service Manual
5026
Paper tray dust cover removal
See “Dust cover assembly” on page 7-3 for the part number.
1. Remove the paper tray.
2. Remove the left cover. See “Left cover removal” on page 4-21.

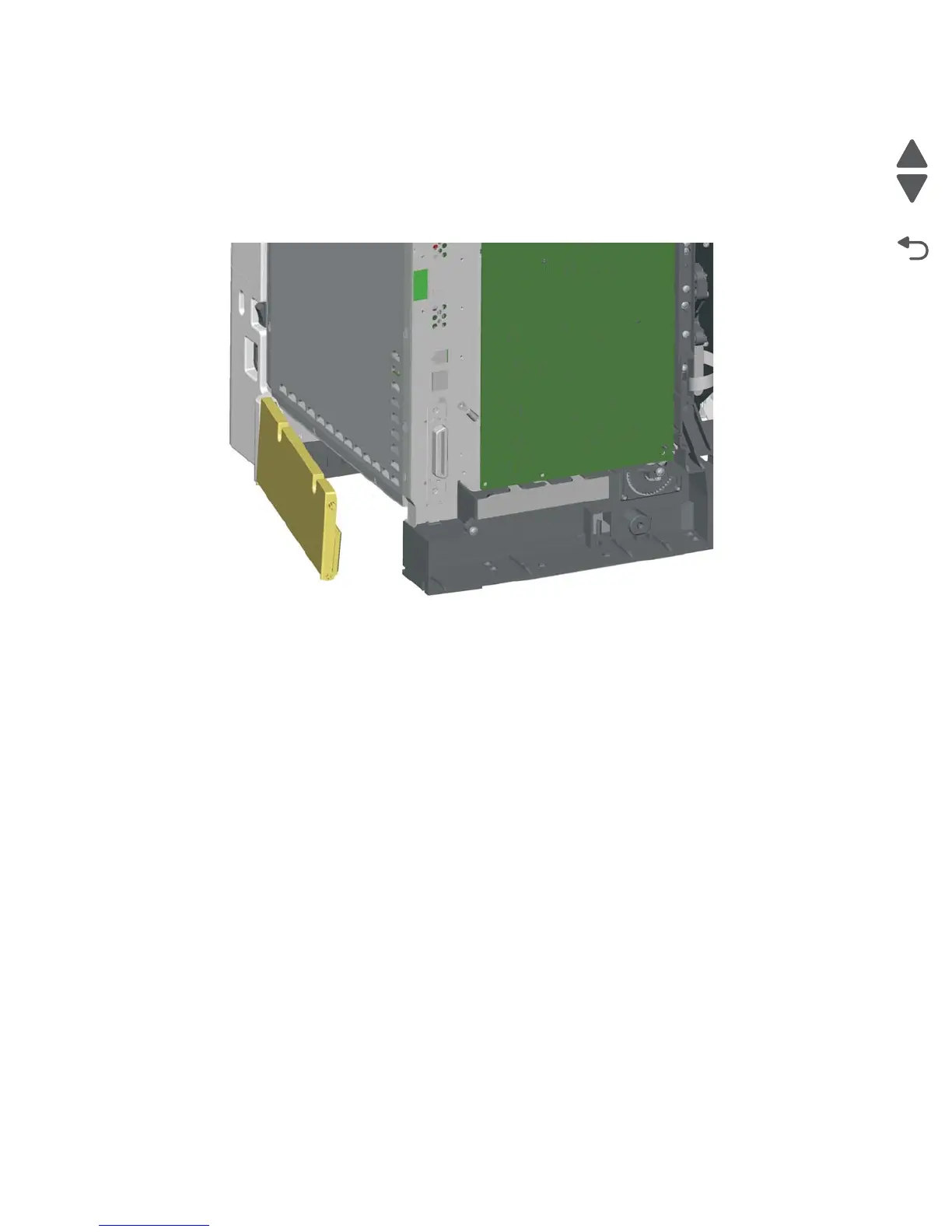

3. Remove the paper tray dust cover assembly.
Installation notes:
1. Place the paper tray dust cover into position.
2. Slide the left cover down until it locks into place.
Note: Be sure the post in the left cover engages the hole in the left cover, and that the post in the paper
tray dust cover engages the hole in the left cover properly.
3. Replace the three screws on the left cover.
Note: Verify that the paper tray dust cover swings properly.
