Repair information 4-65

5026

Go Back

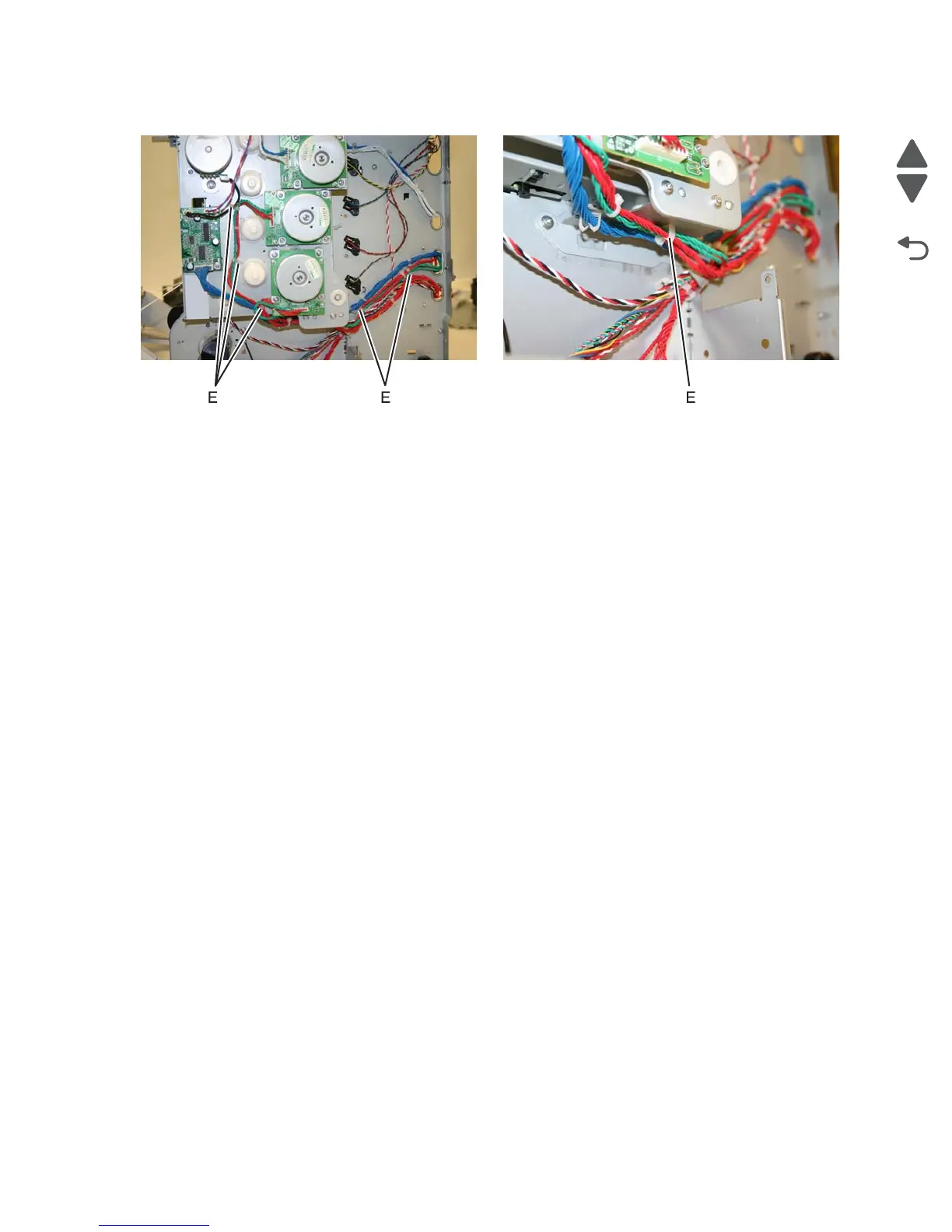

4. Remove the cable from the six retainers (E).

Installation notes:

Note the routing of the cables and the cable retainers.
