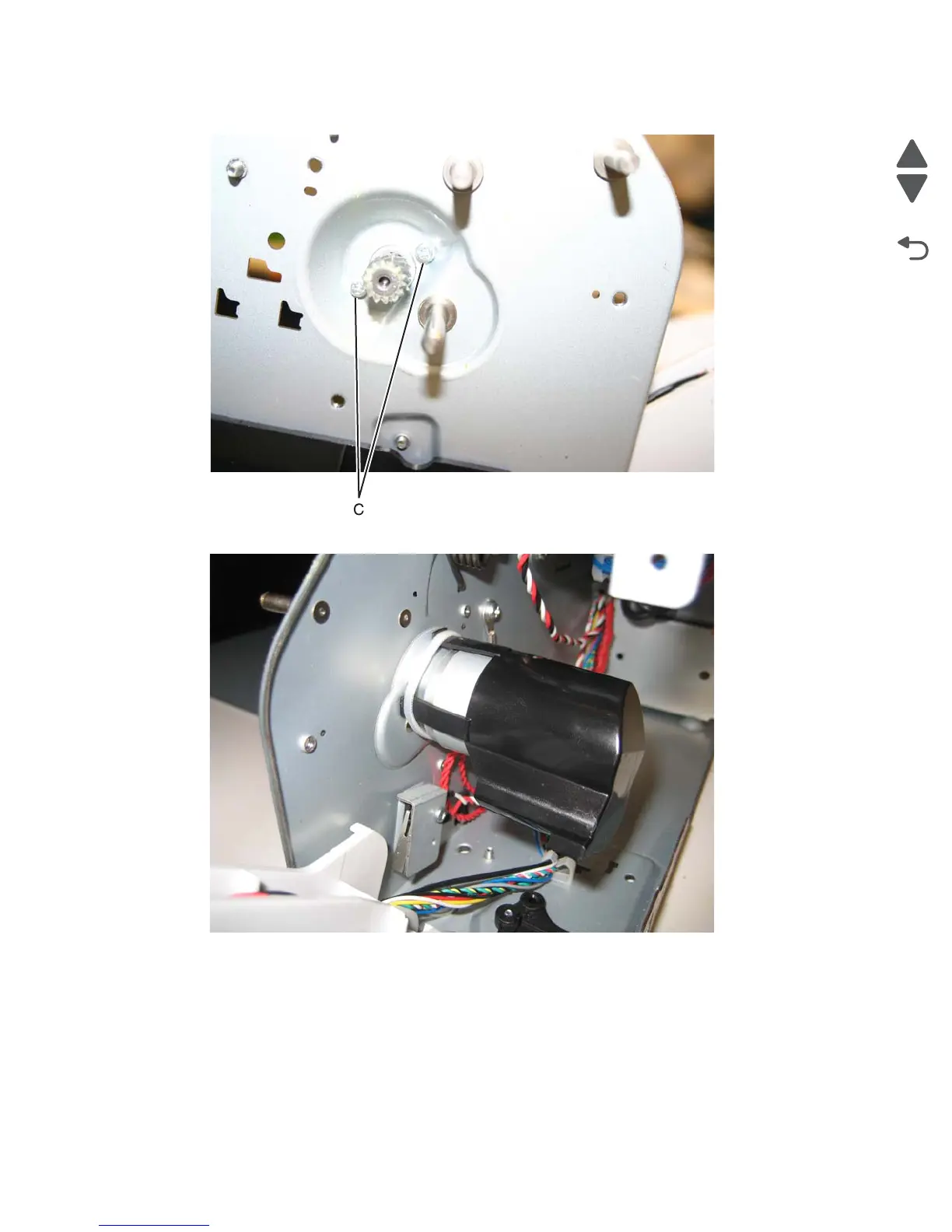

4. Replace the screws (C).

5. Slide the housing onto the motor, making sure the four tabs of the housing slide under the cable tie.
