Repair information 4-119

5026

Go Back

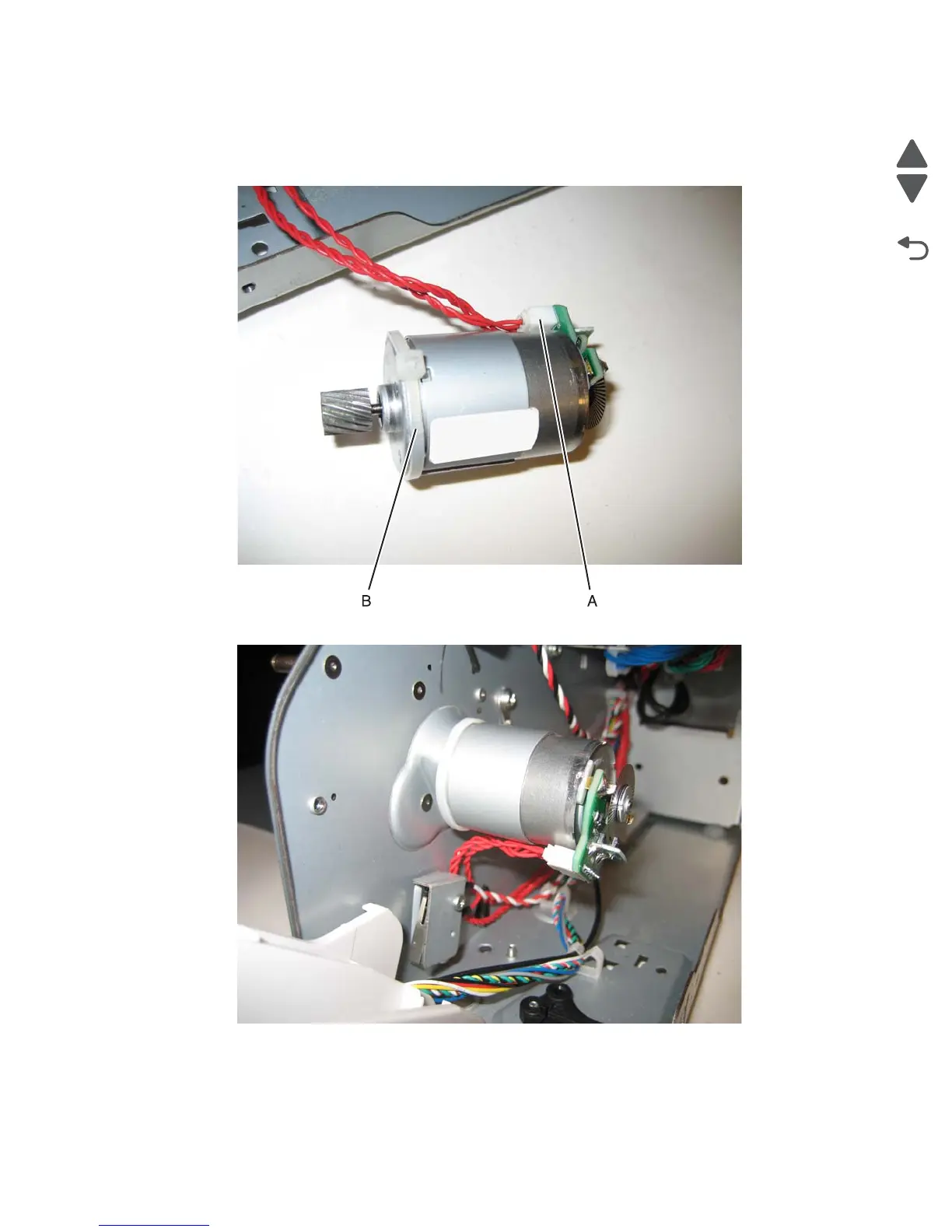

Installation notes:

1. Connect the cable (A) at the motor.

2. Slide the cable tie (B) onto the motor.

3. Insert the motor into the frame.
