Repair information 4-109

5026

Go Back

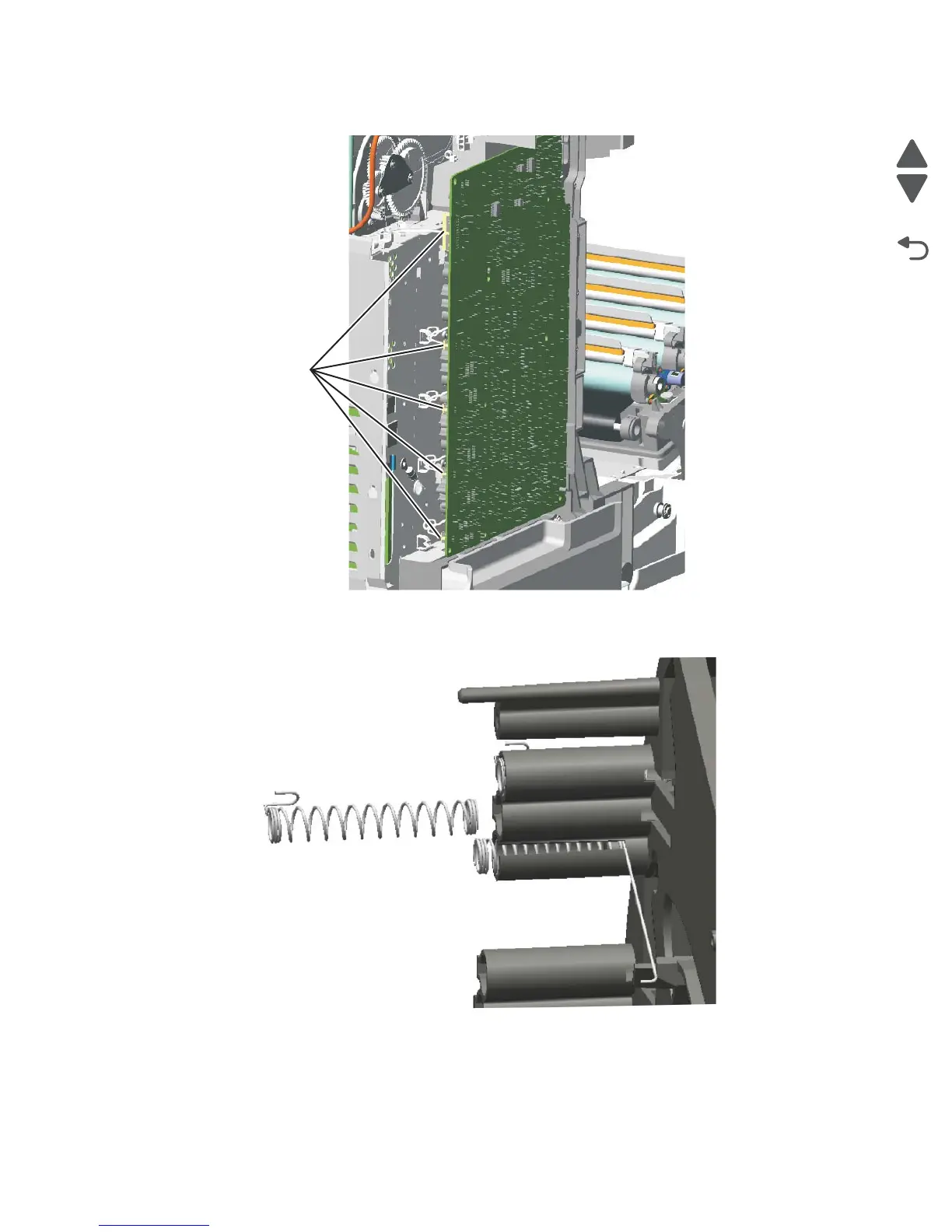

4. Disconnect the five connectors (C) from the HVPS.

Installation notes: Be sure to replace the spring when replacing the HVPS. See the illustration for proper

orientation.
