Repair information 4-163

5026

Go Back

5. Remove the fuser. See “Fuser removal” on page 4-104.

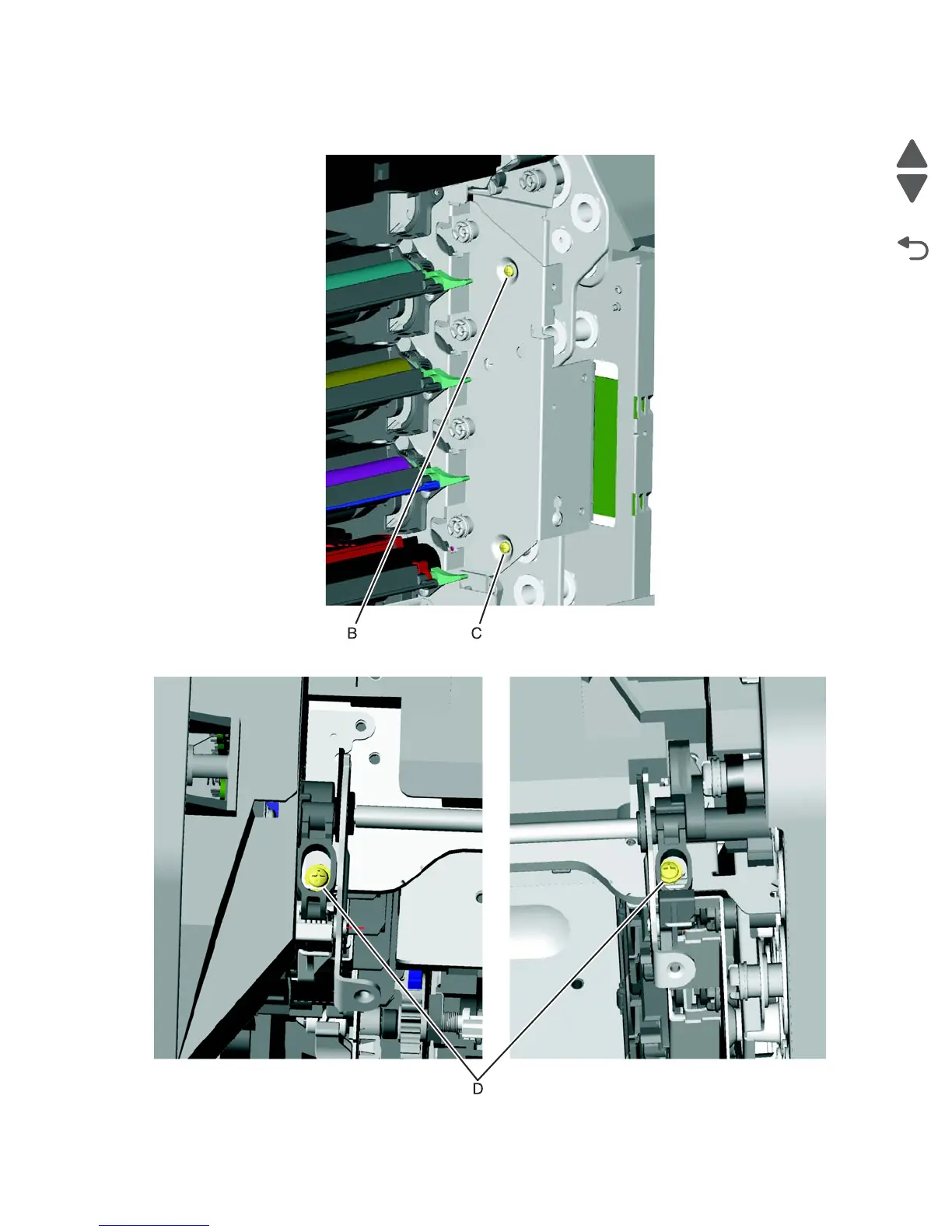

6. Remove the top screw (B), and loosen the other screw (C). This will allow you to flex the EP drive.

7. Remove the two screws (D).
