4-164 Service Manual

5026

Go Back

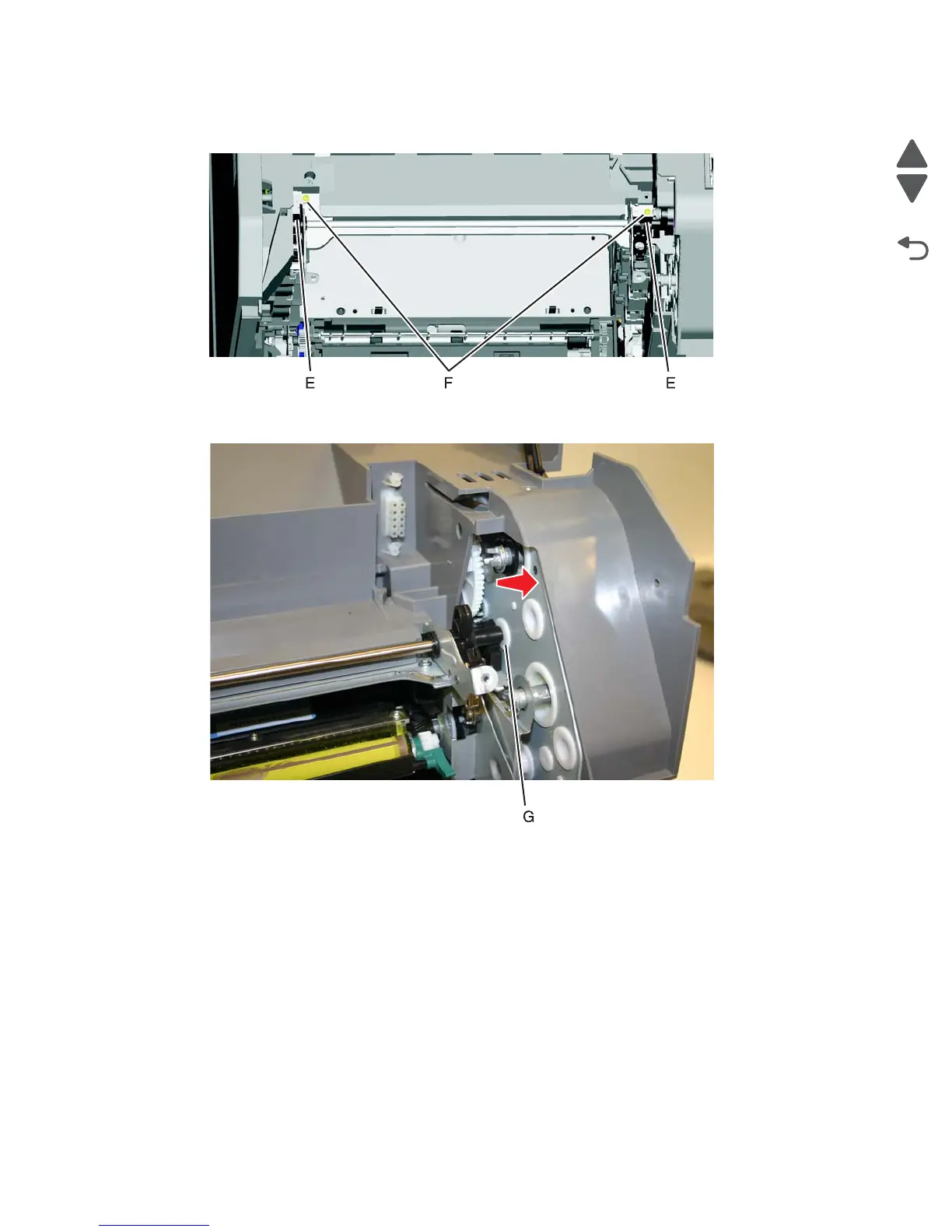

8. Rotate the camshaft up using the camshaft actuator handles (E) so you can access the other two

screws (F), and remove them.

9. Flex the EP drive assembly to remove the right side of the camshaft from the boss (G), and lift to remove

the camshaft.
