Diagnostic information 2-97
5026
4

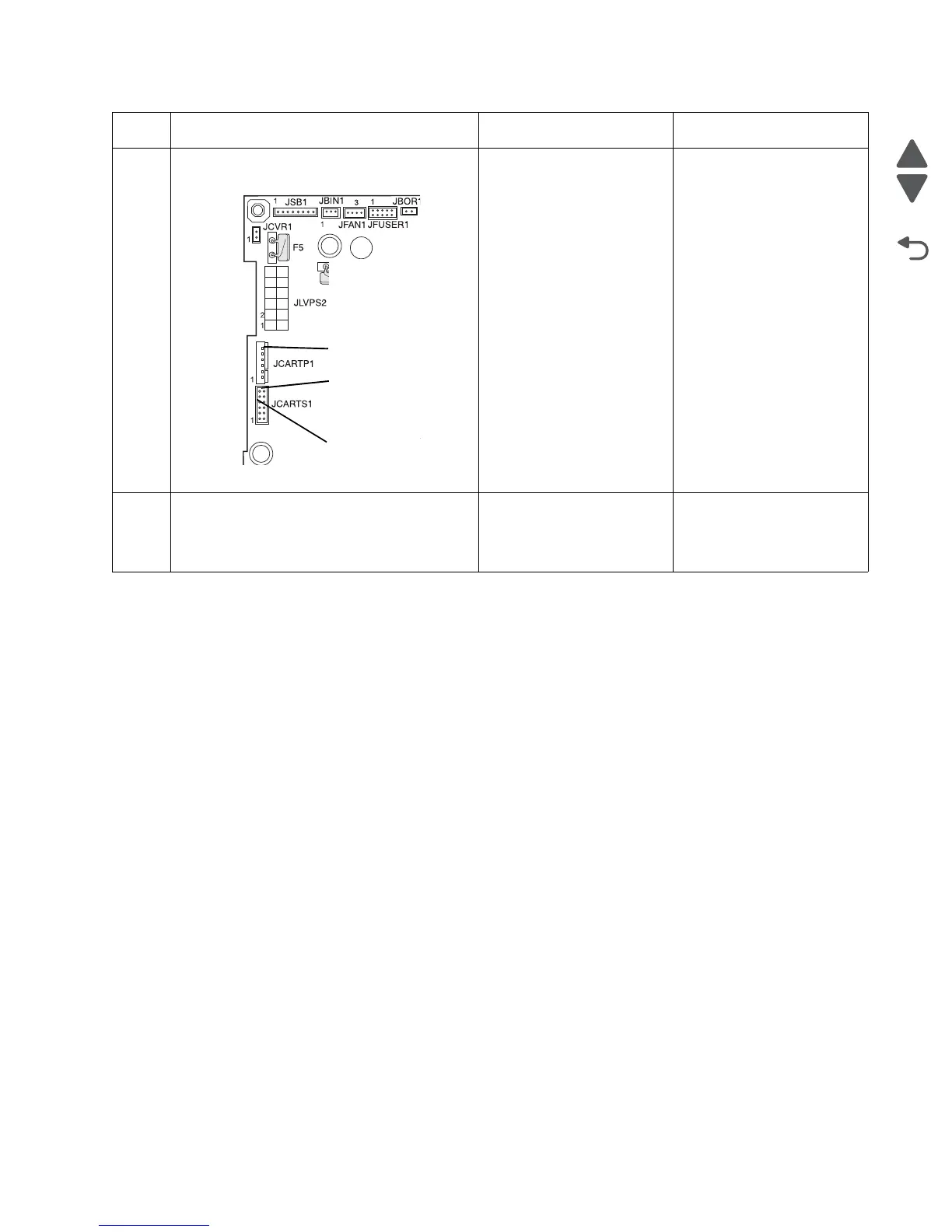

Check the continuity of JCARTP1, pins 4, 5,
and 6 and JCARTS1, pins 7 through 12.
Is there continuity?
Go to step 5. Replace the cartridge
motor 1/fuser motor cable.
See “Cartridge motor 1/
fuser cable removal” on
page 4-62.
5
Replace the EP drive assembly. See
“Electrophotographic (EP) drive assembly
removal” on page 4-82.
Does the error clear?
Problem resolved. Replace the system board.
See “System board
removal” on page 4-153.
Step Questions / actions Yes No
To Next Page
