250 paper jam

If paper is jammed in the multipurpose tray, 250.xx Paper jam appears.

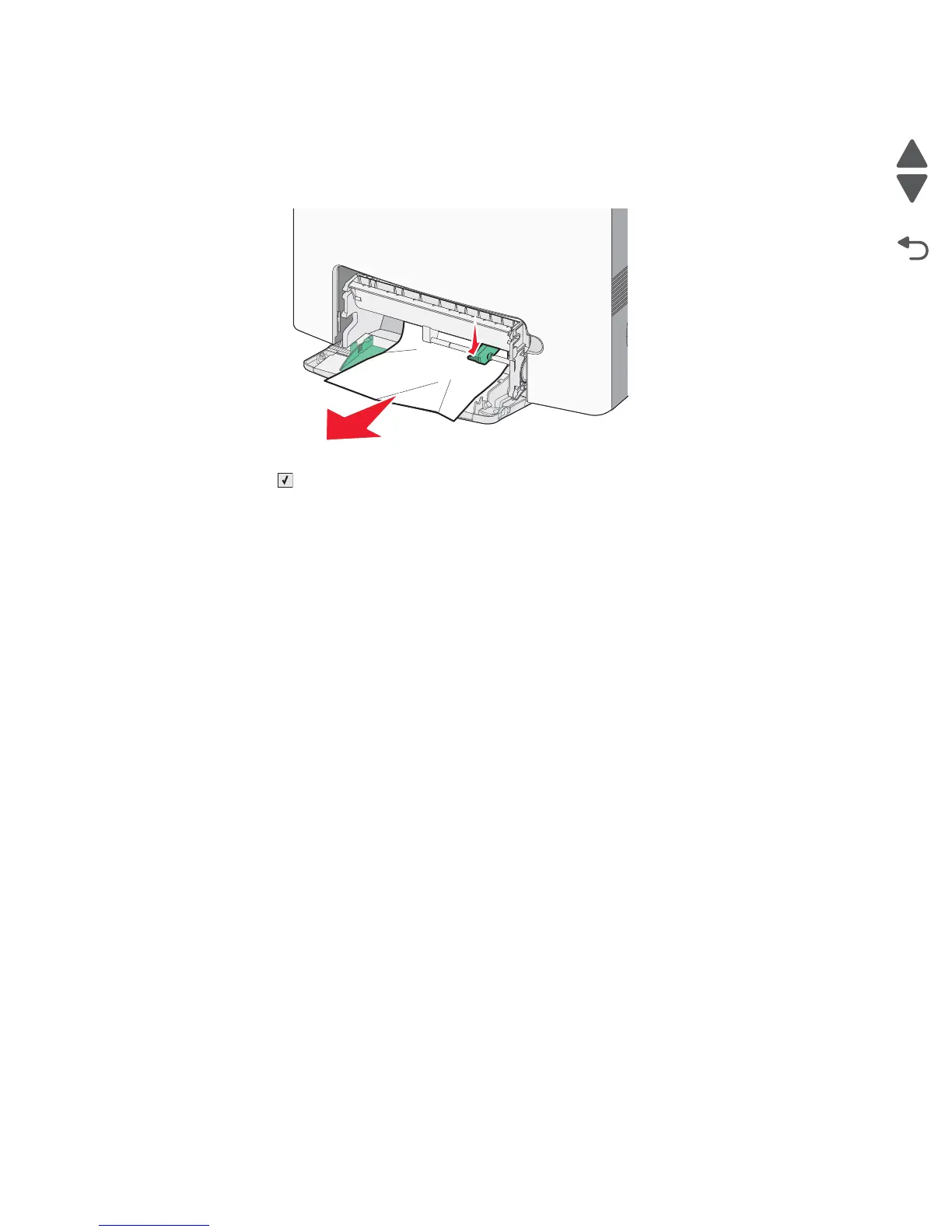

1. Press the paper release lever, and then remove the jammed pages from the multipurpose tray.

2. Load new paper into the multipurpose tray.

3. Press Select ().
