4-6 Service Manual
5026
88A0293 Plastite M2.2 L5 Contact spring cap to left guide assembly 4
88A0312 Plastite M2.9 L6
PAN
Backup springs to reference edge plate assembly 2
Cartridge cooling fan duct to top cover 2
Cartridge left guide assembly to leftside plate assembly (exterior side of plate
assembly)
4
Cover mount to rightside plate 3
Display detent spring to display back bezel 1
Door straps to front access door cover 2
Door bracket to front access door cover 2
Duplex entry guide to front access door cover 4
Exterior screws attaching cover bracket to front access door cover 2
Front cover bracket to front access door cover 4
Ground terminal/operator panel card to top access door cover CBM 1
Lower frame support to lower left frame assembly 2
Operator panel card to top access door cover CBM 3
Option locator to rightside plate 1
88A0313 Plastite M2.9 L8
PAN
Contacts assembly to leftside cartridge guide 1
Cover bracket to front access door cover 2
Cover pivot to swingout frame 3
HVPS to transfer contact assembly 3
HVPS to leftside cartridge guide assembly 2
Interior screws attaching cover bracket to front access door cover 2
88A0323 M3.5X1.34 Panhead
8L
Duplex upper guide to top access door cover CBM 9
Ground strap/contact to front door frame 1
Lower right frame to right side plate 3
Pick assembly to lower plate 4
Secures reference edge assembly to door assembly 2
Static brush bracket to top access door cover CBM 1
Torque tube cover to front door frame 6
88A0324 M3.5X1.34 PANHD
10L
EP drive to rightside plate 2
Secures door cap to door assembly 1

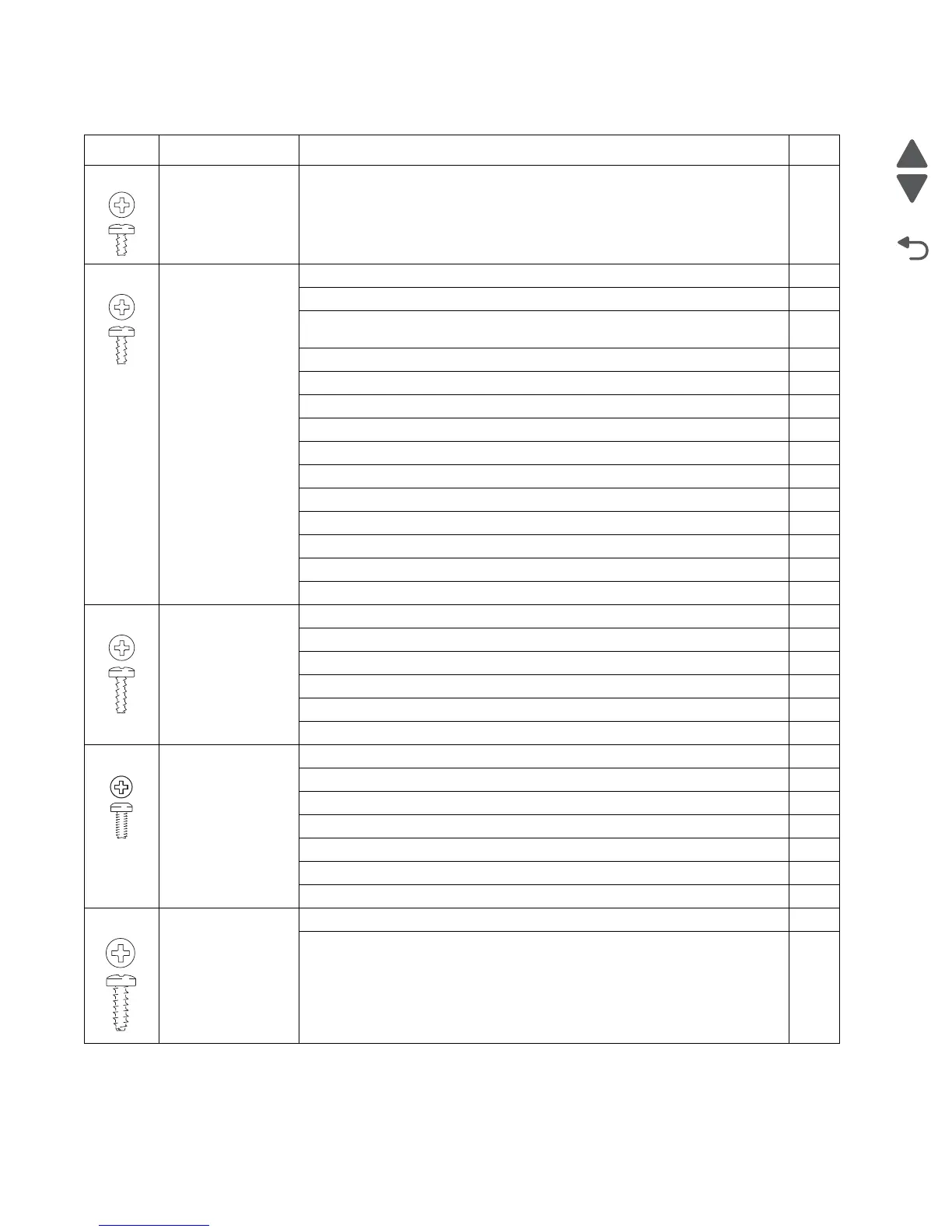

Screw identification table (continued)
P/N Screw type Location Qty
