Repair information 4-17
5026
12. Repeat this process for skew (Z). Don't forget to subtract the T value and add the current cyan Z value to
obtain the new skew (Z) value.

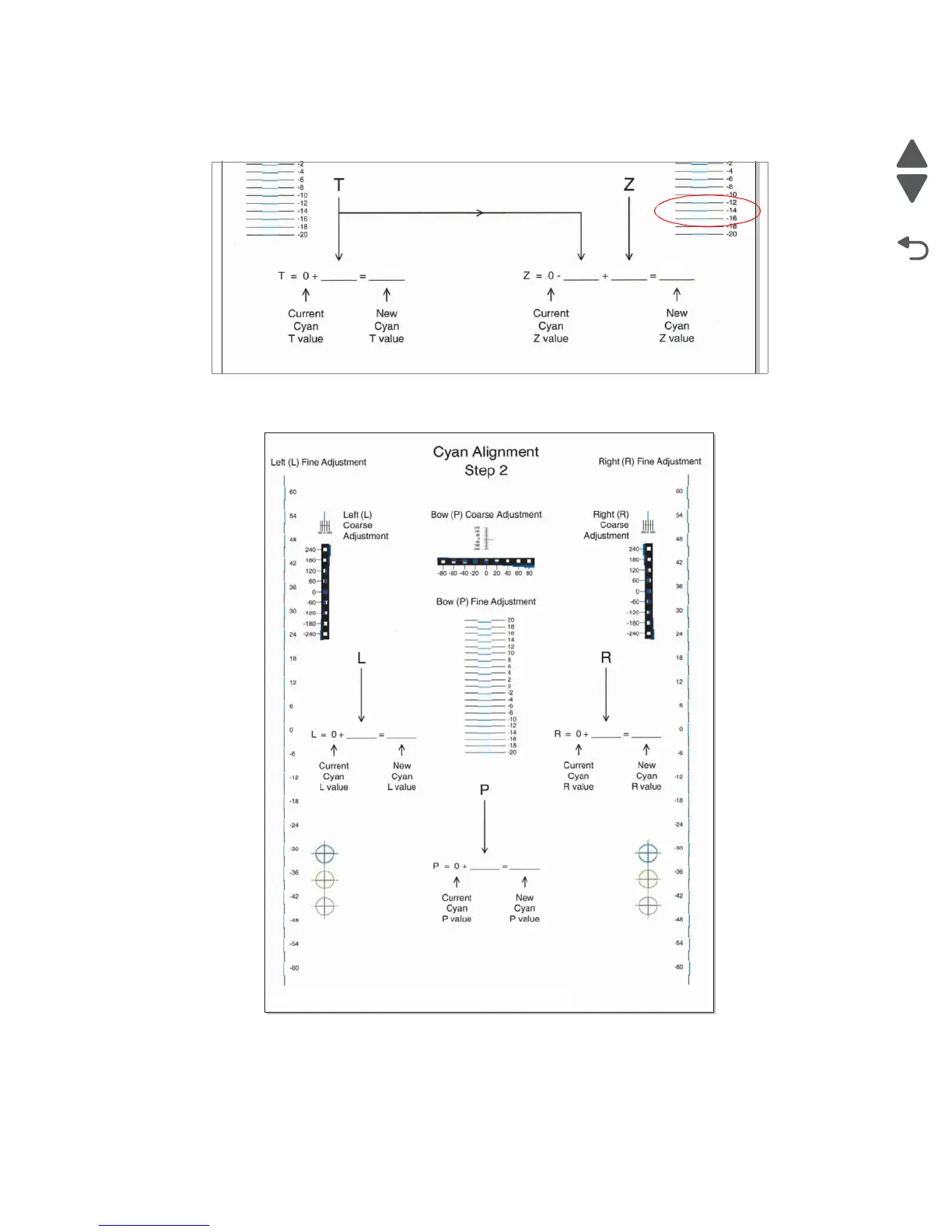

An example is shown below:
13. Continue to follow the directions on the bottom of the first page to find the Cyan Top Margin (T), the
Skew (Z), and on the second page of the Quick Test page, the Left Margin (L), Right Margin (R), and
Bow (P).
14. Repeat steps 2 through 11 for yellow and magenta.
Note: Start each color group by setting the Top Margin, Left Margin, Right Margin, Bottom Margin, Skew,
and Bow to zero.
