Repair information 4-23

5026

Go Back

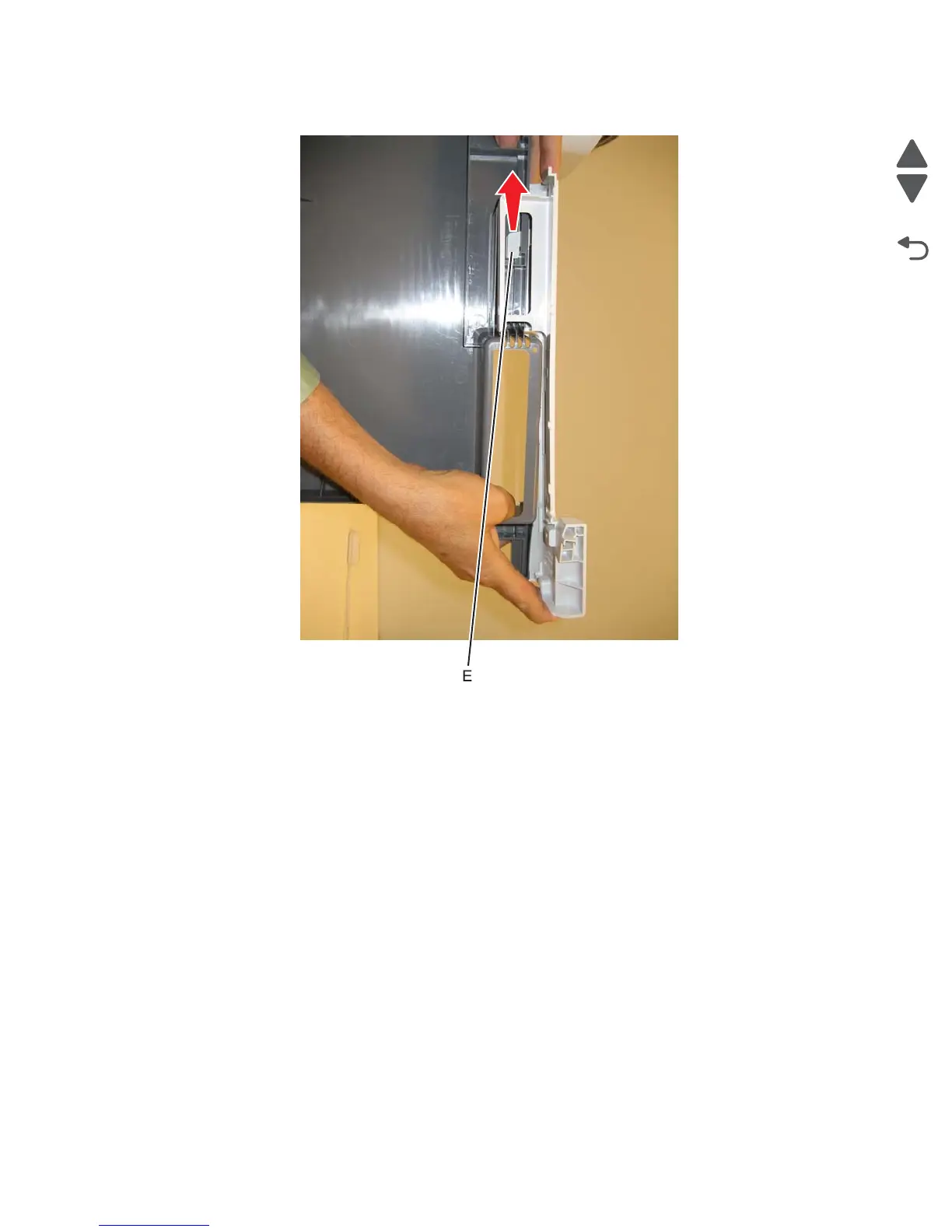

9. Separate the left cover and rear left cover by sliding the left rear cover as shown to disengage the latch (E).
