4-48 Service Manual

5026

Go Back

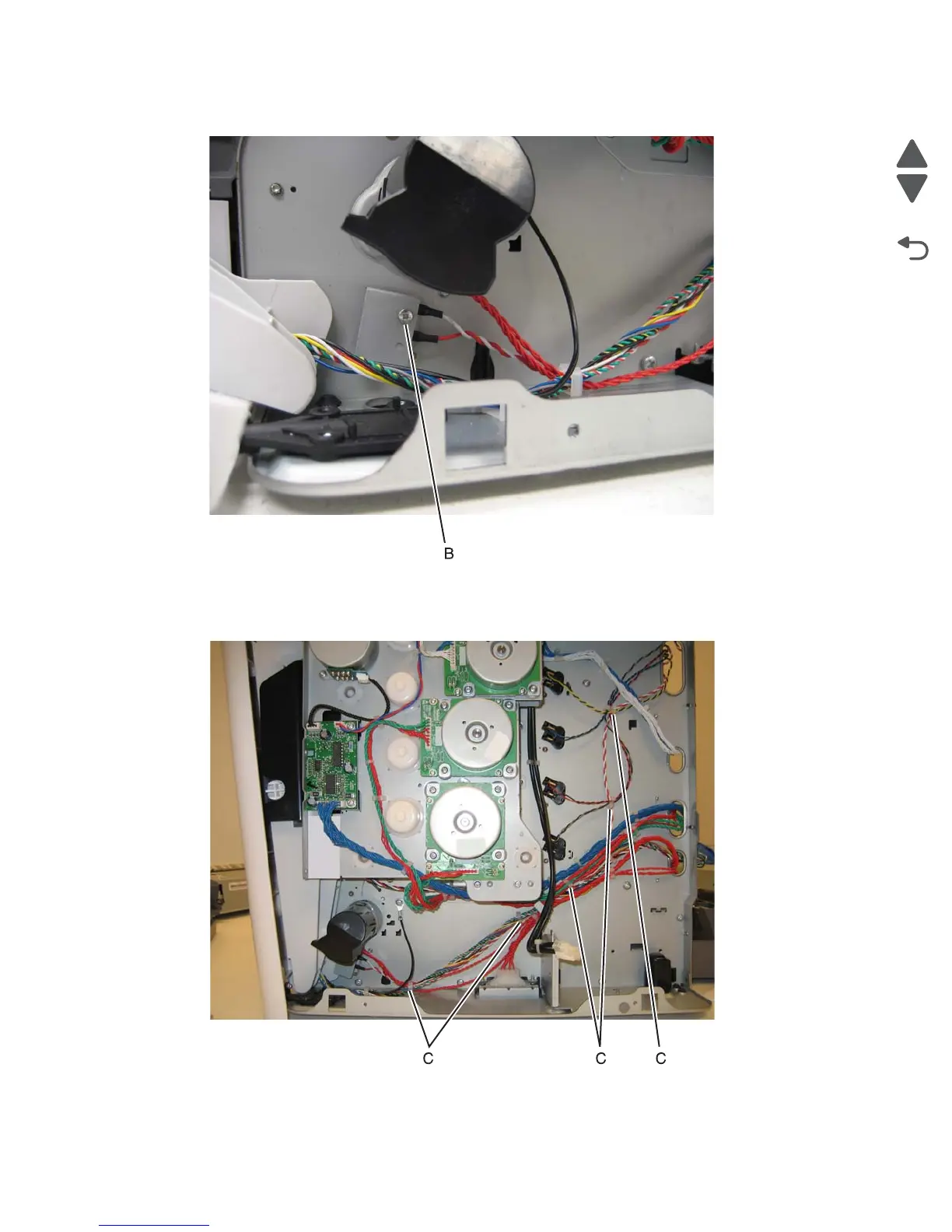

3. Remove the screw (B), and the bracket separates from the 24 V interlock switch.

Installation notes:

Observe the routing of the 24 V interlock switch cable (C).
