4-50 Service Manual

5026

Go Back

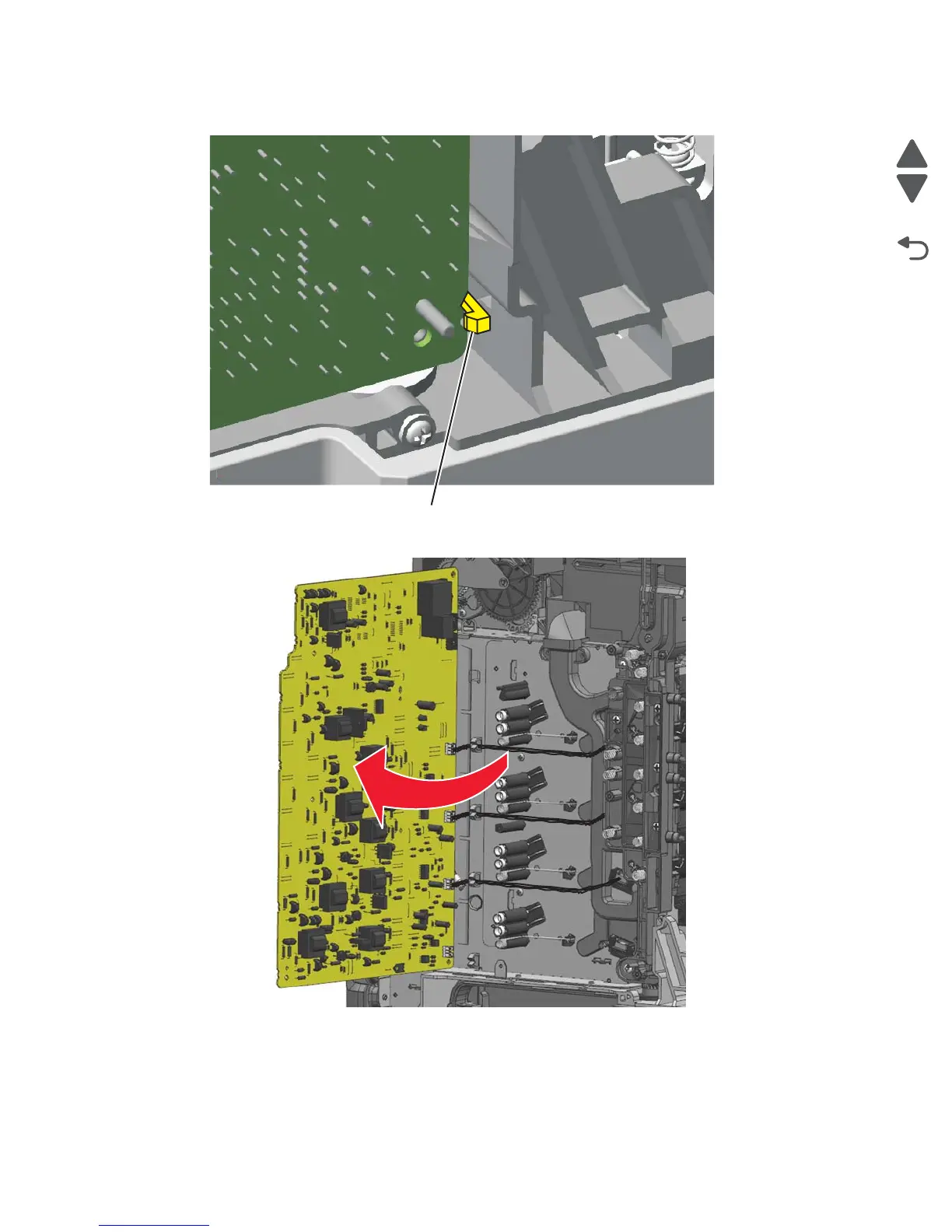

4. Release the locking tab (B) from the front, lower corner of the HVPS.

5. Lay the board to the left.
