Lexmark C734dn - Page 303

To Next Page

To Previous Page

Repair information 4-81

5026

Go Back

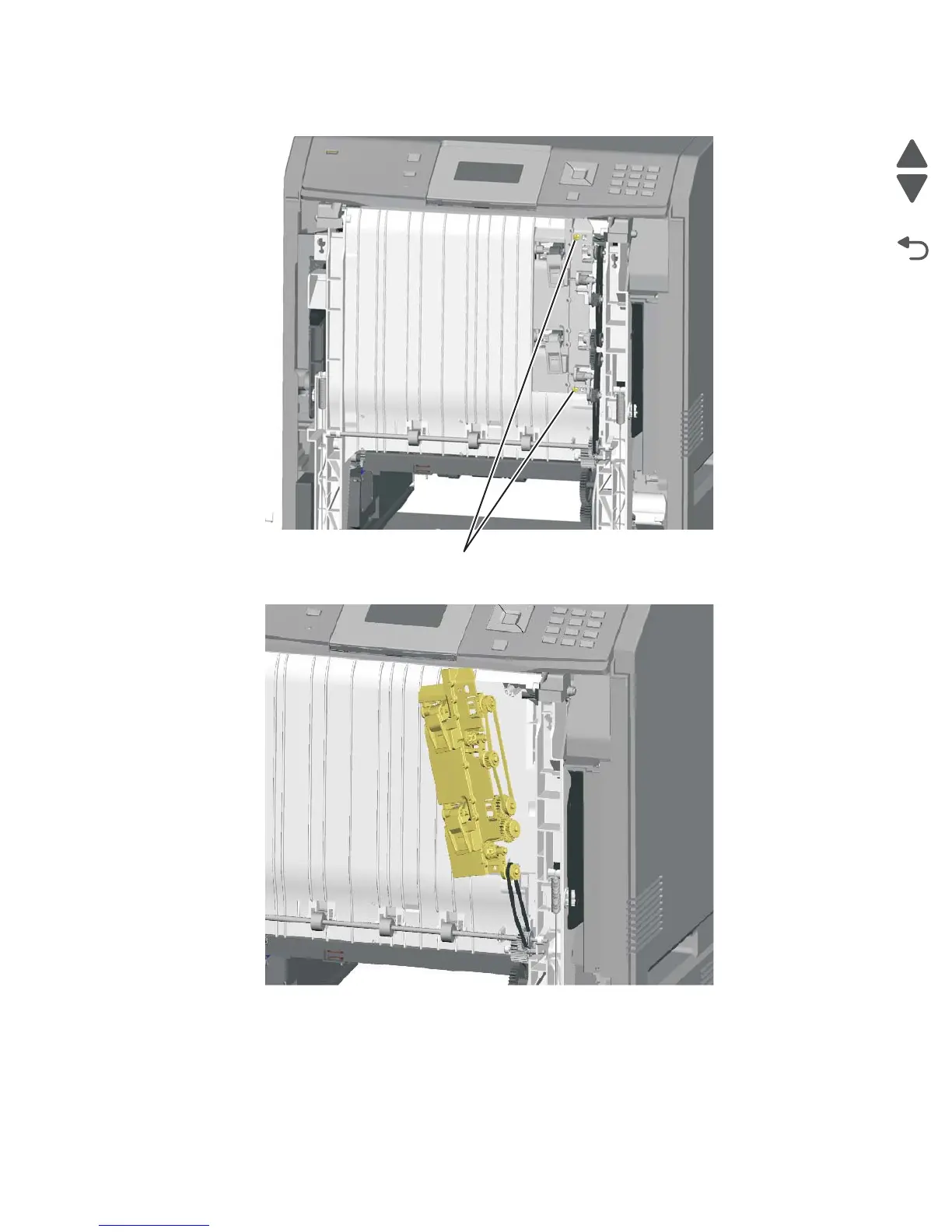

7. Remove the two screws (G).

8. Remove the duplex reference edge guide assembly.
