Repair information 4-83

5026

Go Back

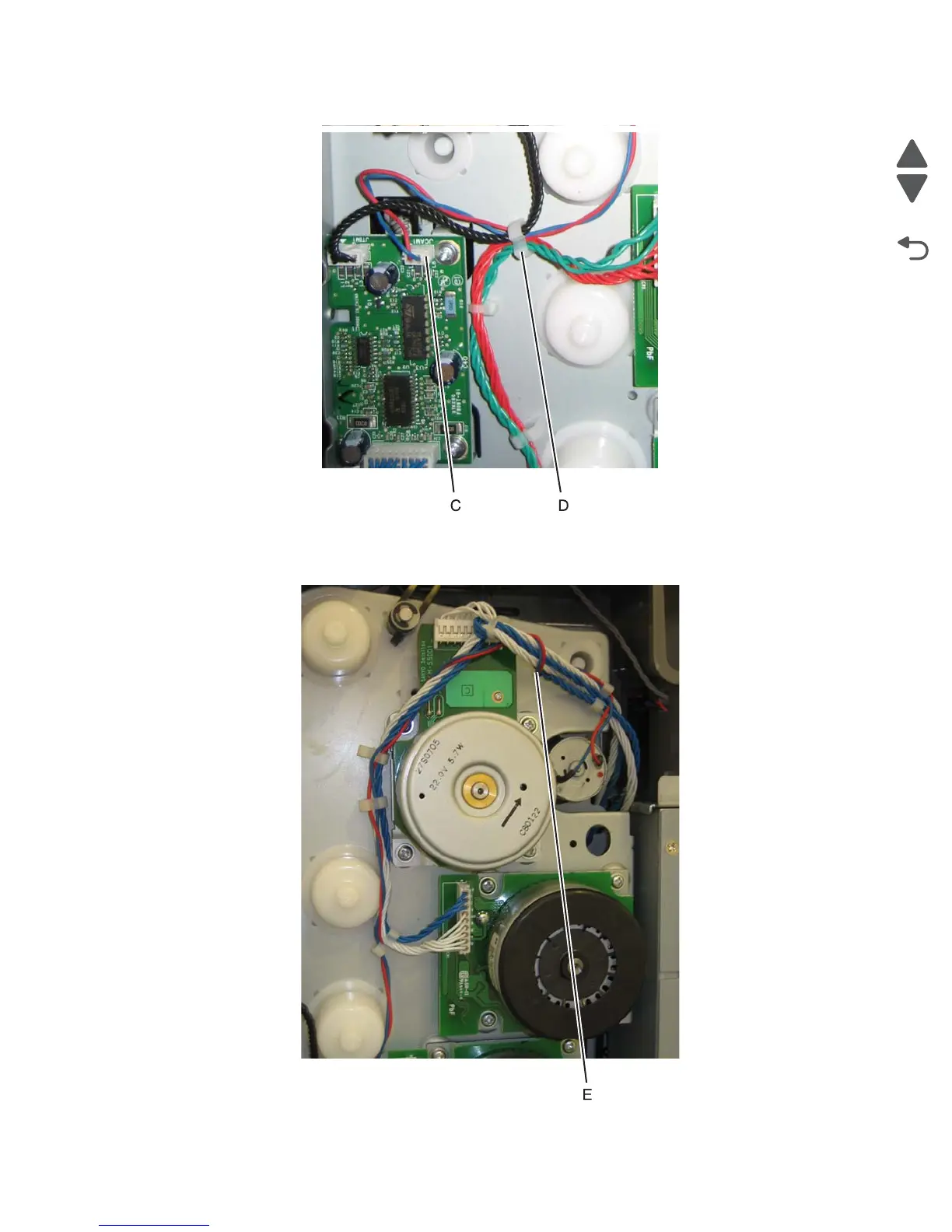

6. Disconnect the camshaft/transport cable connector (C), and remove the cable from the cable clamps (D).

7. Unwind the camshaft/transport cable and the cartridge 1/fuser cables (E).

Note: Be sure to rewind the camshaft/transport cable around the other cables with about four twists to

keep them from interfering with or being damaged by the motors.
