Repair information 4-89

5026

Go Back

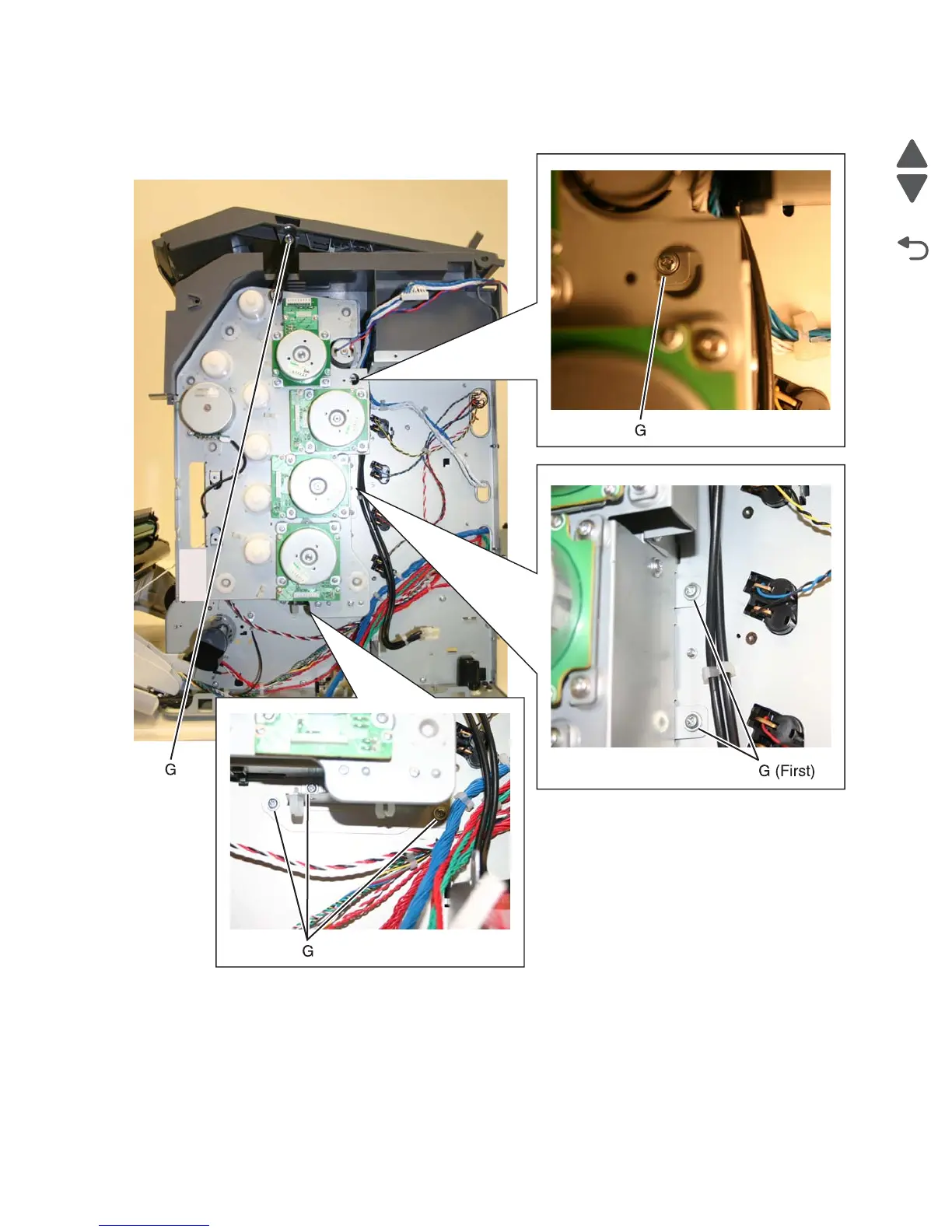

5. Hold the drive in place while replacing the first of the seven screws, then continue replacing the rest of the

screws (G).
