Repair information 4-91

5026

Go Back

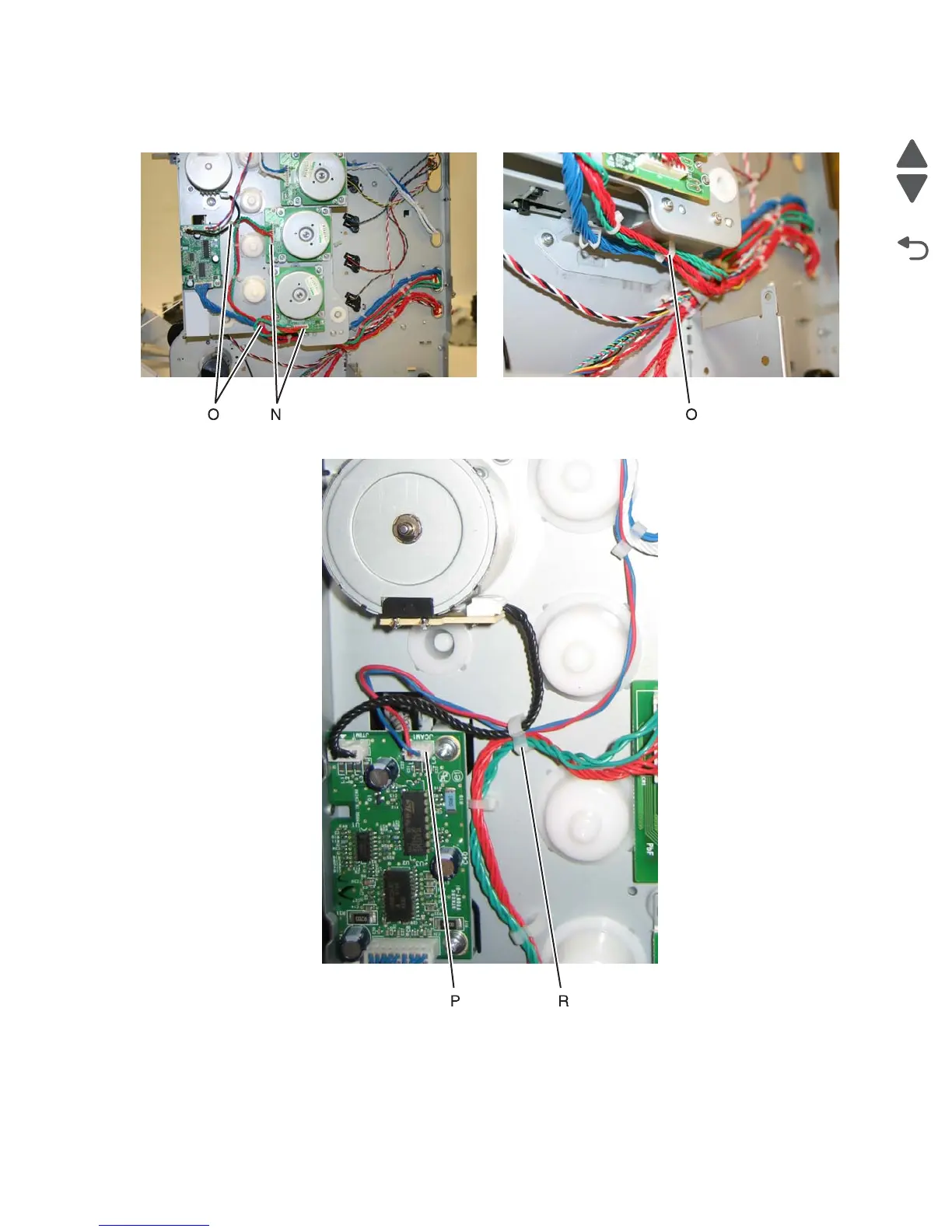

10. Connect the cartridge 2/cartridge 3 motor cable (two connectors) (N), and make sure the cable is in the

cable clamps (O).

11. Connect the camshaft/transport cable connector (P), and make sure the cable is in the cable clamps (R).
