Repair information 4-95

5026

Go Back

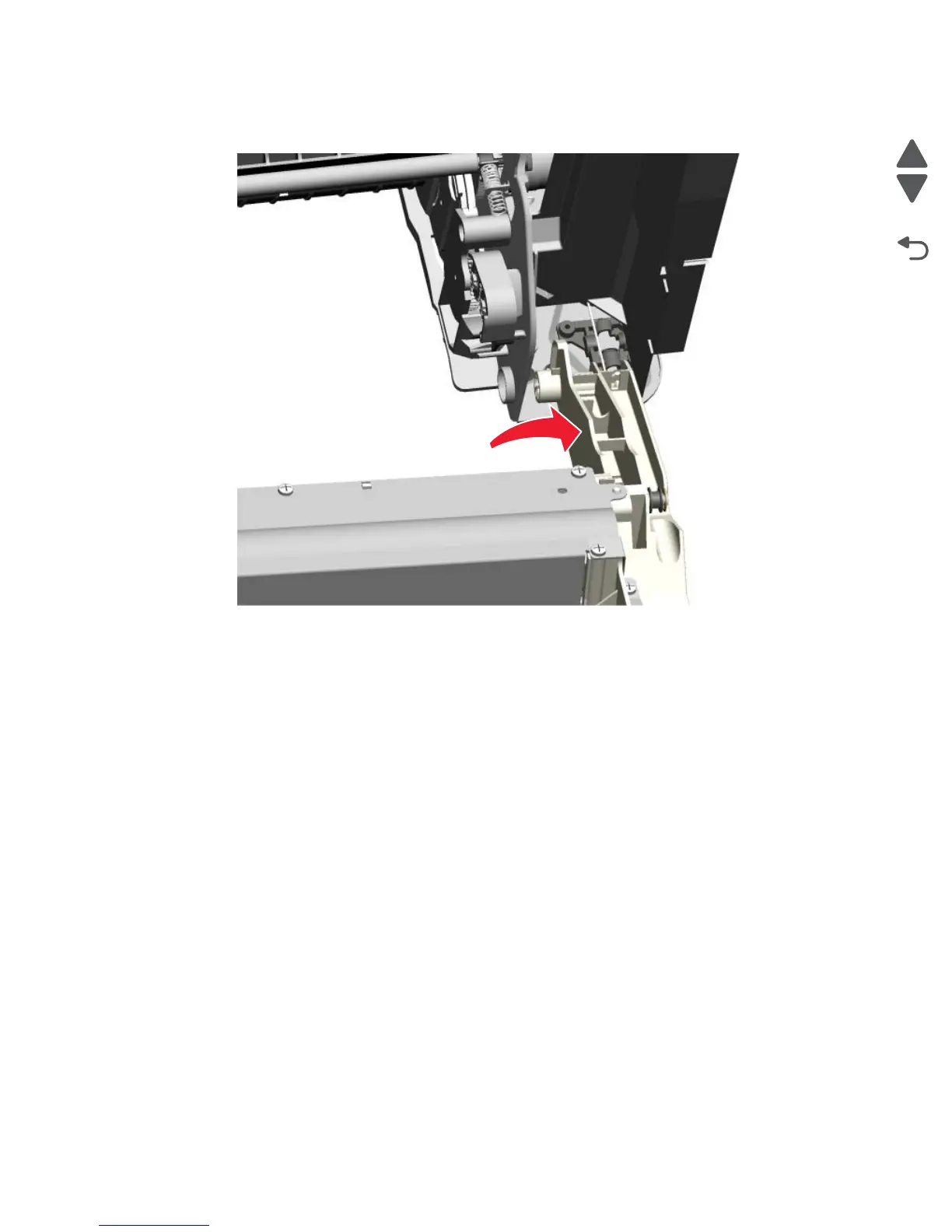

9. Open the front door assembly, slide it to the right, and remove. You need to press firmly to slide the front

door assembly to the right.

Installation note: See “Front door assembly front cable (left) removal” on page 4-96 and “The longer

cable installs on the left side of the printer.” on page 4-99 for proper installation of the cable restraints.
