Repair information 4-117

5026

Go Back

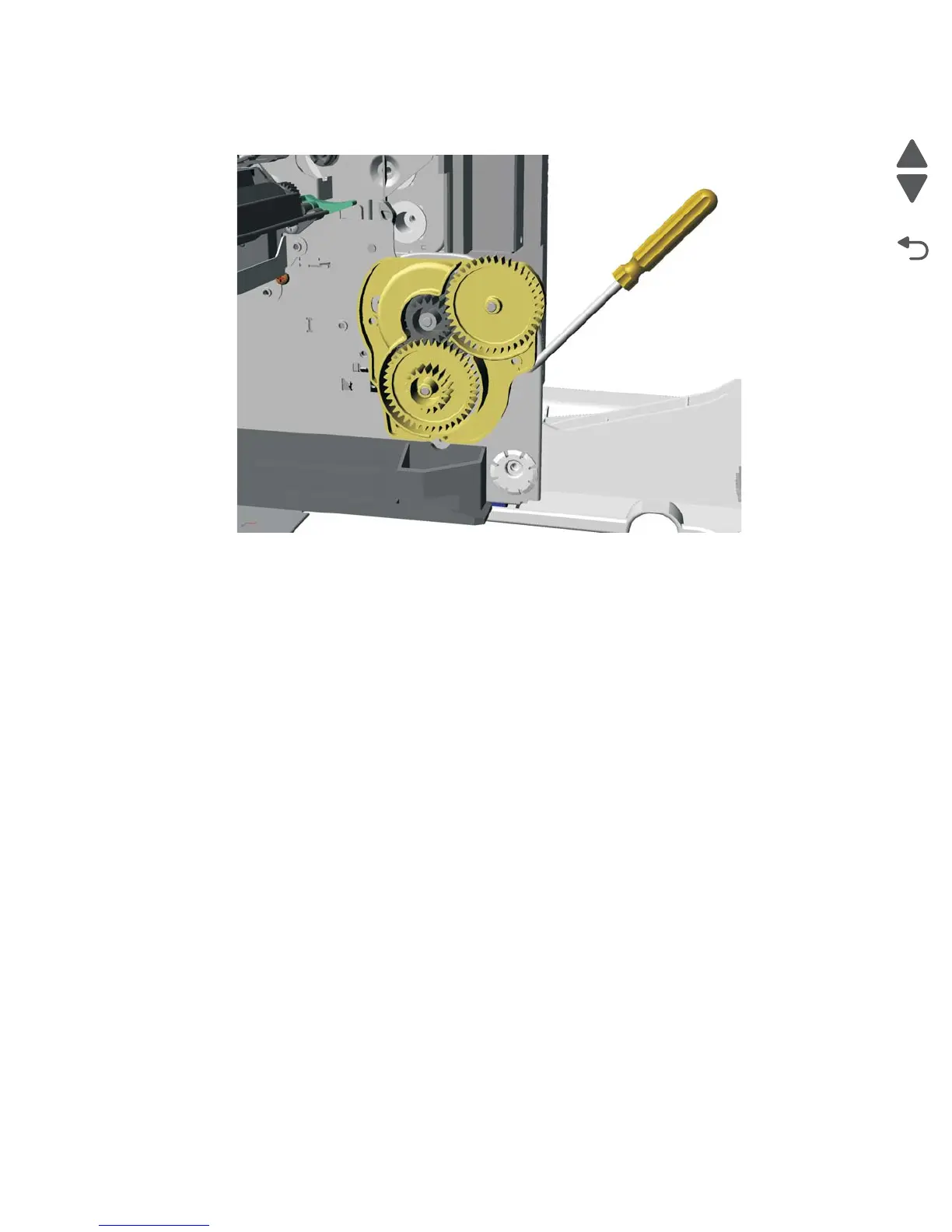

5. Slide a flathead screwdriver up and under the front cover.

6. Slide the remaining two gears and housings off.
