4-136 Service Manual
5026
period of time. Place a clean, dry cloth over the transfer module and photoconductor units until they are
required.
8. Remove all of the toner cartridges.
9. Remove the right cover and the right side cover (attached). See “Right cover removal” on page 4-37.
10. Remove the LVPS. See “Low-voltage power supply (LVPS) removal” on page 4-112.
11. Remove the system board support shield. See “System board support shield removal” on page 4-157.

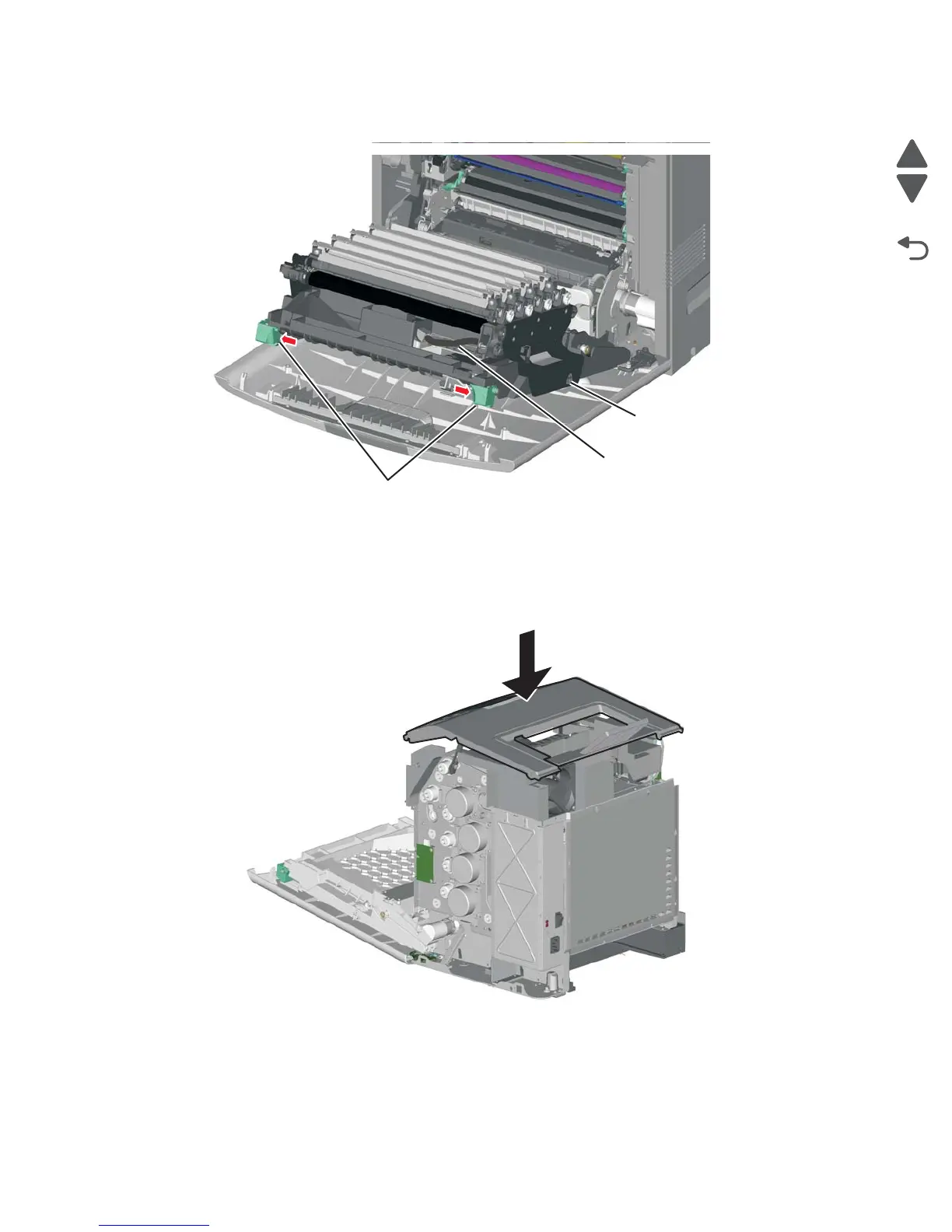

12. Push the top access cover down until it clicks into place.
