4-154 Service Manual

5026

Go Back

5. Disconnect all the cables from the system board.

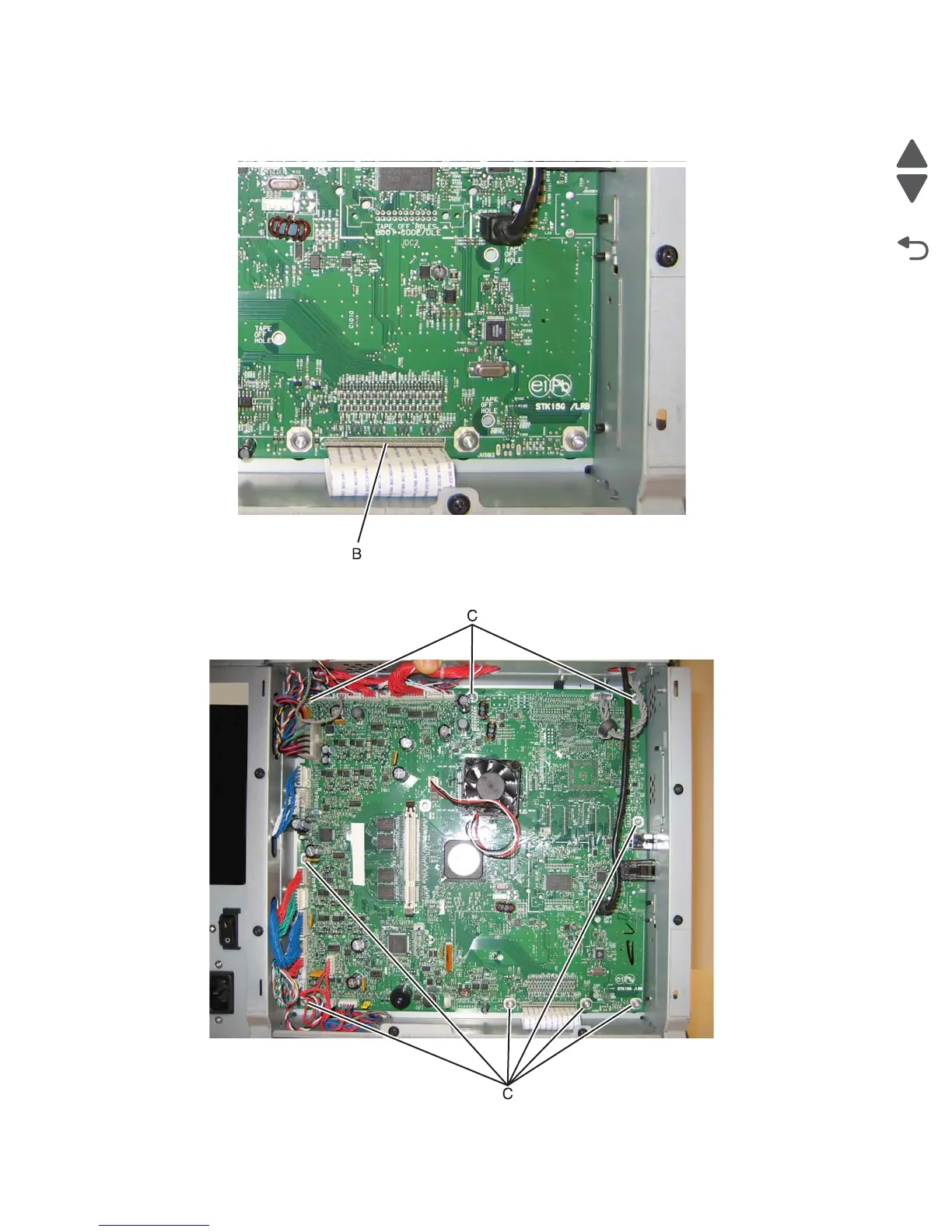

Warning: Do not use tools to remove the printhead ribbon cable (B). A flat ribbon cable can be damaged

and should be removed gently by hand.

6. Remove the nine screws (C) from the system board.

7. Remove the system board.
